Home > products > Stainless Steel Woven Wire Mesh > Food Grade Sus304 Stainless Steel Woven Wire 120 Mesh Corrosion Proof

Food Grade Sus304 Stainless Steel Woven Wire 120 Mesh Corrosion Proof

Product Details

Place of Origin: AnPing,China

Brand Name: Bingze

Certification: ISO9001-2015

Model Number: SS20230920

Payment & Shipping Terms

Minimum Order Quantity: 1roll

Price: 30dollars-50dollars

Packaging Details: 1.There are waterproof paper and carton pipe inside for support. 2.Then use wooden case / wooden pallets outside. 3.It also can be packaged according to your request.

Delivery Time: 12-15days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 8000rolls per month

Get Best Price
Highlight:

Sus304 Stainless Steel Woven Wire

,

Corrosion Proof ss woven wire mesh

Product Name:
Stainless Steel Woven Wire Mesh
Product Hole Shape:
Square
Wire Gauge:
0.05-1.8mm
Usage:
Industry,Food,Filter
Mesh Size:
6-400mesh
Product Color:
Silver
Packing:
Wooden Box
Feature:
Corrosion Resistance
Product Name:
Stainless Steel Woven Wire Mesh
Product Hole Shape:
Square
Wire Gauge:
0.05-1.8mm
Usage:
Industry,Food,Filter
Mesh Size:
6-400mesh
Product Color:
Silver
Packing:
Wooden Box
Feature:
Corrosion Resistance
Food Grade Sus304 Stainless Steel Woven Wire 120 Mesh Corrosion Proof

Food Grade Sus304 Stainless Steel Woven Wire 120 Mesh Corrosion Proof

Products Description




Product Name
Woven Wire Mesh, Wire Cloth
Stainless Steel Grade
304, 304L, 316, 316L, 310s, 904L, 430, etc
Special Material Options
Inconel, Monel, Nickel, Titanium, etc
Wire Diameter Range
0.02 - 6.30mm
Hole Size Range
1 - 3500mesh
Weave Types
Plain Weave
Twill Weave
Dutch or 'Hollander' Weave
Plain Dutch Weave
Twill Dutch Weave
Reverse Dutch Weave
Multiplex Weave
Mesh Width
Standard less than 2000 mm
Mesh Length
30m rolls or cut to length, minimum 2m
Mesh Type
Rolls and sheets are available
Production Standards
ASTM E2016 - 20
Certification
ISO9001: 2015
Stainless steel Woven wire mesh or woven wire cloth, is woven by machine. It is similar to the process of weaving clothing, but it is made of wire. The mesh can be woven in different weave styles. Its purpose is to produce solid and reliable products to adapt to various complex application environments.High precision technology makes the production cost of woven wire mesh higher, but it also has a very wide range of uses.
The main materials are 304 stainless steel wire mesh, 316 stainless steel wire mesh, 310 stainless steel wire mesh, 904L stainless steel wire mesh, 430 stainless steel wire mesh, and other stainless steel grade. The most popular ones are 304 stainless steel wire mesh and 316 stainless steel wire mesh, which can be used in most application environments and are not expensive. And some special materials are used to meet the high requirements of the use environment, such as Inconel wire mesh, Monel Wire Mesh, Titanium Wire Mesh, Pure Nickel Mesh, and Pure Silver Mesh, etc.
Product Images

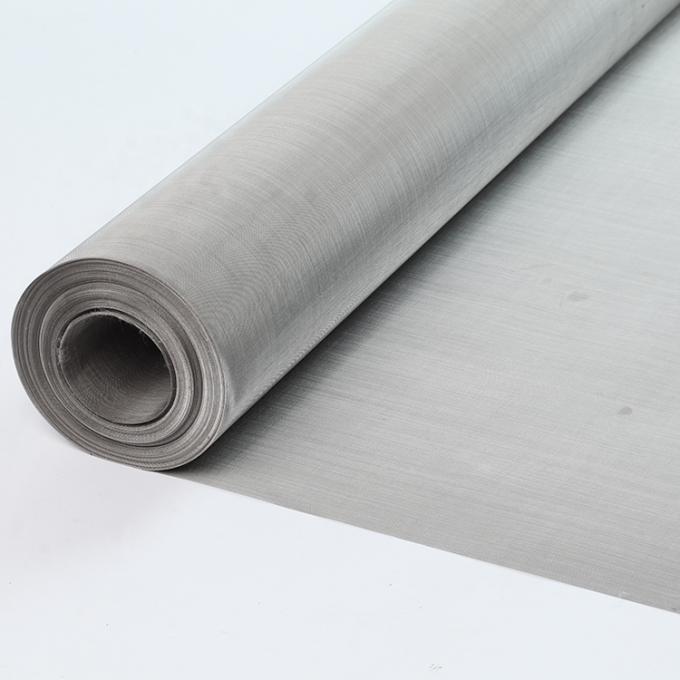

Food Grade Sus304 Stainless Steel Woven Wire 120 Mesh Corrosion Proof 0


What industries are stainless steel wire mesh used in ?
Stainless steel woven wire mesh is widely used in daily use, petroleum, chemical, food, pharmaceutical, and classifiction, screening and screening of solid, liquid and gas in the fields of mining, metallurgy, aerospace, and mechanical manufacturing.
Product Specifications
Stainless steel Woven wire mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening.
Due to its own characteristics of stainless steel, the stainless steel woven wire mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance Corrosion. The product has the characteristics of acid and alkali resistance, temperature resistance, wear resistance and other properties, therefore, in recent years, stainless steel net is widely used in many different fields.
Food Grade Sus304 Stainless Steel Woven Wire 120 Mesh Corrosion Proof 1

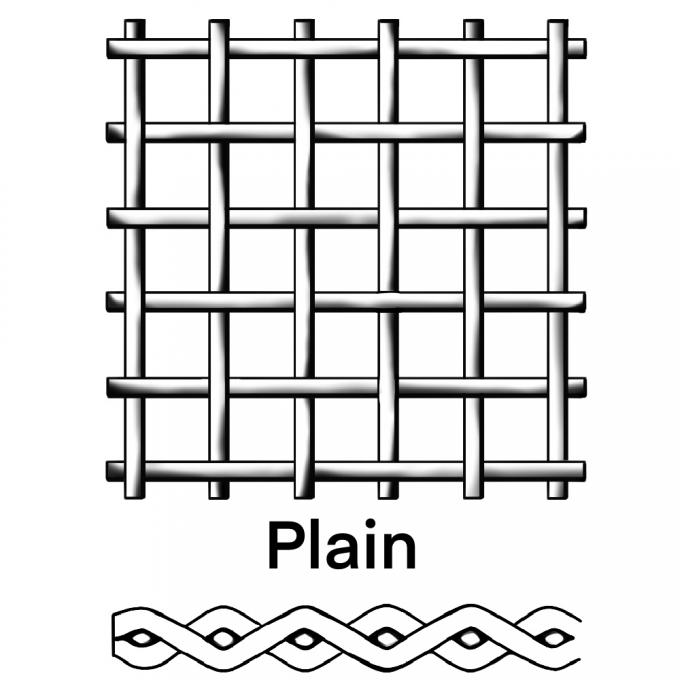

This is the most commonly used weaving type. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Food Grade Sus304 Stainless Steel Woven Wire 120 Mesh Corrosion Proof 2

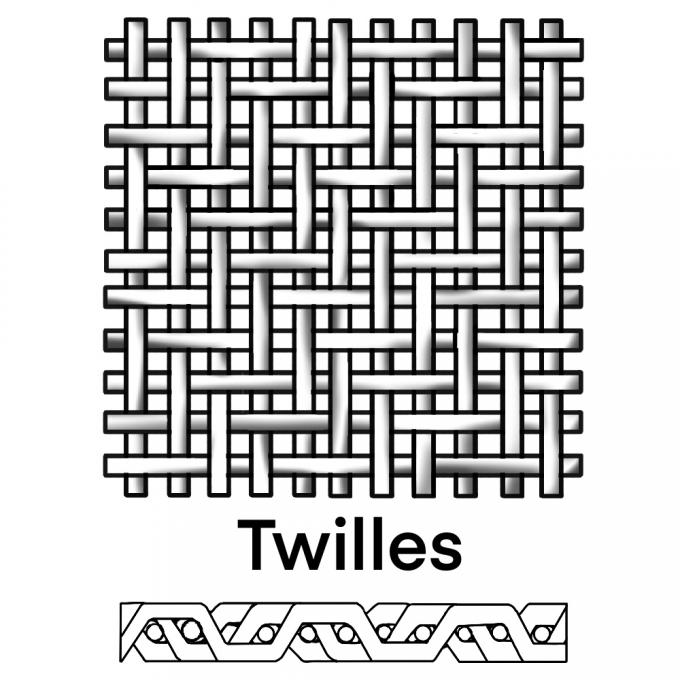

The wires of the weft and the warp inter cross two above and two below, inverting the intersections of the warp wire at an established distance and obtaining a rigid, stable and robust type of wire mesh fabric
Food Grade Sus304 Stainless Steel Woven Wire 120 Mesh Corrosion Proof 3

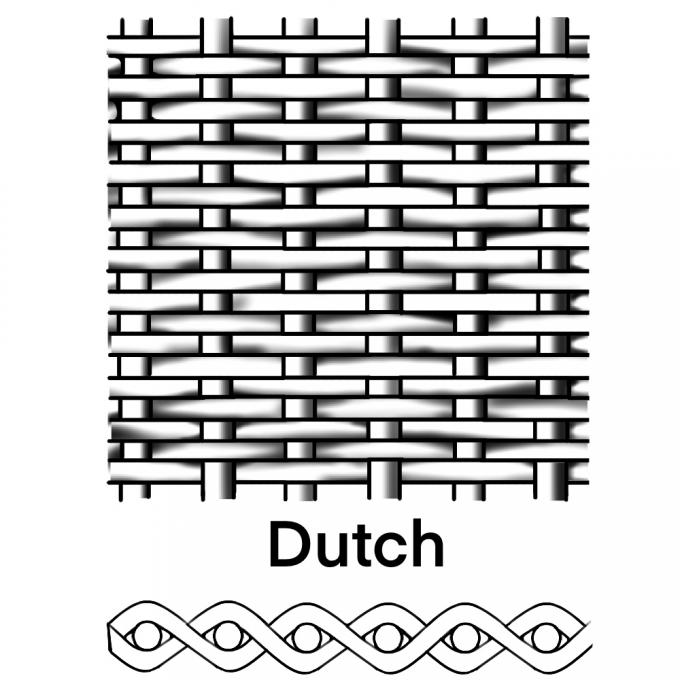

The wires of the weft and the warp inter cross two above with a larger weft wire than the warp. Such kind of wire mesh allows a greater difference between the diameter and the number of weft and warp wire.
Product Application

Perfectly suited for a wide array of architectural and functional purposes,stainless steel woven wire mesh is used in various industries. The petroleum, chemical environmental protection, mining, aerospace, papermaking, electronic, metallurgical, food and pharmaceutical industries all utilize woven wire mesh.

In fact, Stainless steel woven wire mesh has a seemingly infinite range of applications. Because it has many irreplaceable features and advantages, there can be few industries where wire mesh does not have a part to play.

Packing & Delivery
Food Grade Sus304 Stainless Steel Woven Wire 120 Mesh Corrosion Proof 4
Food Grade Sus304 Stainless Steel Woven Wire 120 Mesh Corrosion Proof 5
Company Profile
Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. It is a manufacturer integrating production, processing, distribution and wholesale. The main products include galvanized welded wire mesh,stainless steel welded wire mesh,PVC welded wire mesh,crimped wire mesh,galvanized woven wire mesh,stainless steel woven wire mesh,chain link fence,steel fence,welded wire mesh fence panels,PVC euro fence,358 anti-climb fence,razor wire and so on.
Since its beginning,we have been working at four points, they are High Quality,Quick Delivery,Better Price and Thorough Service,Rely on the product quality and our credit standing, we have got favourable comments from the customers.
The company introduces precise making machines and technics,combinning scientific inner managing method and quality control system.Since the year it was established ,we developed our powder and credit standing and got reliances of our customers in home and abroad.Our products is checking by very high standeard, and the qualified ones leaved the factory to the whole county an some aabroad countries,such as Southeast Asia,Middle East,Ameria,Japan,and some Africa countries.
Certifications

 Food Grade Sus304 Stainless Steel Woven Wire 120 Mesh Corrosion Proof 6

FAQ

1.What are your business hours?

Normal business hours are 8:00 AM to 6:00 PM Beijing Time Monday through Saturday. We also have 24/7 fax, email, and voice mail services.

2.What is your minimum order?

Without question, we do our best to maintain one of the lowest minimum order amounts in the B2B industry.

1 ROLL, 30 SQM, 1M x 30M.

3.Can I get a sample?

Most of our products are free to send samples, some products require you to pay the freight

4.Can I get a special mesh that I don't see listed on your website?

Yes, many items are available as a special order. Generally, these special orders subject to the same minimum order of 1 ROLL, 30 SQM, 1M x 30M.

Contact us with your special requirements.

5.I have no idea what mesh I need. How do I find it?

Our website contains considerable technical information and photographs to assist you and we will attempt to supply you with the wire mesh you specify. However, we cannot recommend a particular wire mesh for specialized applications. We need to be given a specific mesh description or sample in order to proceed. If you are still uncertain, we suggest that you contact an engineering consultant in your field. Another possibility would be for you to purchase samples from us to determine their suitability.

6.I have a sample of the mesh I need but I don't know how to describe it, can you help me?

Yes, send us the sample and we will contact you with the results of our examination.

7.Where will my order ship from?

Your orders will ship out of the Tianjin port.
