Product Details
Place of Origin: Anping,China
Brand Name: Bingze
Certification: ISO9001-2015
Model Number: SGS2053411512
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: 15$-20$
Packaging Details: 1. Fence panel: plastic film + metal pallet; 2. Fence post: every post pack with a plastic bag (the cap is covered well on the post) + metal pallet; 3. Accessory: small plastic bag +carton box; 4. Standard export packing or as your requirement.
Delivery Time: 12-15 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20000 pieces per week
Product Name: |
3D Curved Fence |
Product Panel Height: |
0.6m-3.0m ( Suggest Size : 2m/2.4m/3m ) |
Product Panel Width: |
2.0m-3.0m ( Suggest Size : 2m/2.5m/2.9m ) |
Product Wire Diameter: |
3.0/3.5/4/4.5/5.0mm |
Material:: |
Iron Wire |
Service: |
3D Modeling |
Color: |
RAL Color |
Function: |
Anti-climbing |
Product Name: |
3D Curved Fence |
Product Panel Height: |
0.6m-3.0m ( Suggest Size : 2m/2.4m/3m ) |
Product Panel Width: |
2.0m-3.0m ( Suggest Size : 2m/2.5m/2.9m ) |
Product Wire Diameter: |
3.0/3.5/4/4.5/5.0mm |
Material:: |
Iron Wire |
Service: |
3D Modeling |
Color: |
RAL Color |
Function: |
Anti-climbing |

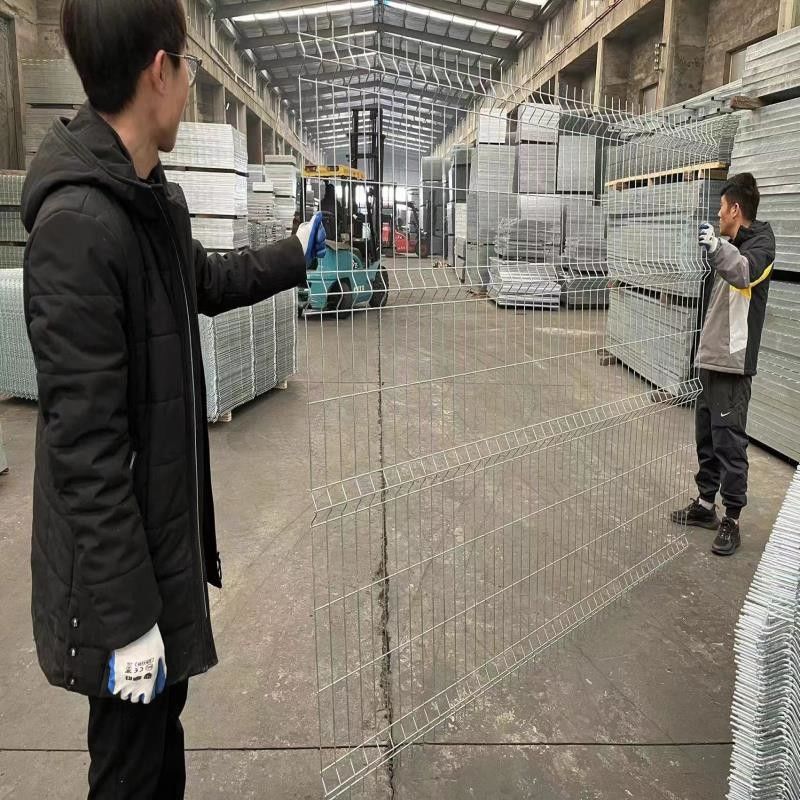

4 Feet Galvanized 3d Curved Fence For Garden Fence Panels
Curvy fence panel is a security and attractive fence with beautiful appearance, and it is ideal for residential area and entertainment venues.
Curvy fence panel can also be called 3D fencing. It is mostly made of stainless steel or carbon steel. Firstly, the workers weld the wires into panel, and then adopt bending machine to bend the wires on the short side of the rectangular shape, so the V-shaped curves are produced. It is important to note that the quantity of V-shaped curve depends on the height of welded wire panel. This uses the principle of triangle stability to provide additional strength and rigidity for the panel. In addition, curvy fence panel can be installed on flat areas or slopes, and it can also be applied in a variety of different land types such as general land surface or sand.
With stable, durable and flexible structure, curvy fence panel is widely used as fence in airport, school, factory, residential area, garden, warehouse, stadium, military venue and entertainment place. We can install the lower curvy fence panel in general place, but in military venue or prison, the height of curvy fence panel should be higher, you can choose the suitable height according to your application.
|
Panel Height
|
0.63m
|
0.83m
|
1.03m
|
1.23m
|
|
Fold Number
|
2
|
2
|
2
|
2
|
|
Panel Height
|
1.43m
|
1.53m
|
1.73m
|
1.83m
|
|
Fold Number
|
2
|
3
|
3
|
3
|
|
Panel Height
|
1.93m
|
2.03m
|
2.23m
|
2.43m
|
|
Fold Number
|
3
|
4
|
4
|
4
|
|
Mesh Size
|
Wire Diameter
|
Panel Height
|
Panel Width
|
Bending No.
|
Common Color
|
Surface Treatment
|
|
50*100mm
50*200mm
55*100mm
55*200mm
|
4mm
5mm
|
830mm
|
2m
2.2m
2.4m
2.8m
3m
|
2
|
Green RAL 6005
Grey RAL 7016
Brown RAL 8019
Black RAL 9005
White RAL 9010
|
1.Hot dipped galvanized after black wire welded
2.PVC coated after galvanized wire welded
3.PE coated after galvanized wire welded
4.Powder coated after galvanized wire welded
|
|
1030mm
|
2
|
|||||
|
1230mm
|
2
|
|||||
|
1530mm
|
3
|
|||||
|
1830mm
|
4
|
|||||
|
2030mm
|
4
|
|||||
|
2230mm
|
4
|
|||||
|
2430mm
|
4
|
Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. It is a manufacturer integrating production, processing, distribution and wholesale. The main products include galvanized welded wire mesh,stainless steel welded wire mesh,PVC welded wire mesh,crimped wire mesh,galvanized woven wire mesh,stainless steel woven wire mesh,chain link fence,steel fence,welded wire mesh fence panels,PVC euro fence,358 anti-climb fence,razor wire,3D Curved fence and so on.
Since its beginning,we have been working at four points, they are High Quality,Quick Delivery,Better Price and Thorough Service,Rely on the product quality and our credit standing, we have got favourable comments from the customers.
The company introduces precise making machines and technics,combinning scientific inner managing method and quality control system.Since the year it was established ,we developed our powder and credit standing and got reliances of our customers in home and abroad.Our products is checking by very high standeard, and the qualified ones leaved the factory to the whole county an some aabroad countries,such as Southeast Asia,Middle East,Ameria,Japan,and some Africa countries.
