| Product Name: | Woven Farm Fencing | Material: | Galvanized Iron Wire |
|---|---|---|---|
| Feature: | Easily Assembled, Eco Friendly | Wire Spacing: | 6" / 9" / 12" |
| Fence Height: | 32" To 74" | Application: | Farm / Field / Grassland |
| High Light: | field wire fence,galvanized wire fence |
||

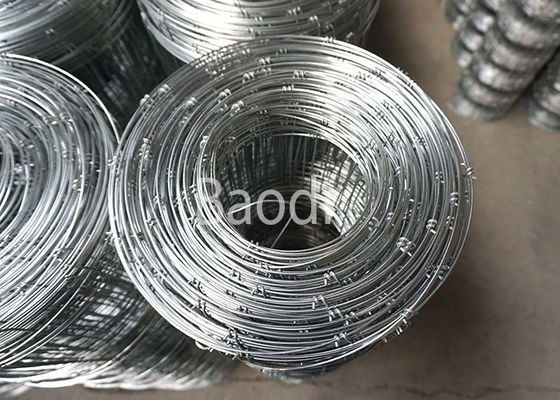

Hinge Joint Knot Woven Farm Fencing In Rolls Height From 0.8m to 1.8m
Introduction:
| Raw Material | Low carbon steel | Length | 50m / 100m |
| Height | 32" to 74" | Vertical Wire Spacing | 6" or 12" |
| Top & Bottom Wire Gauge | 9# to 12.5# | Filler Wire Gauge | 9# to 14.5# |
| Surface Treatment | Hot dipped galvanized or electro galvanized | Packing | Plastic film |
Field Fence is used in fencing pastures, fields, forests and other large areas, also used as a material for animal cages, grape trellis and plant support in garden.
| Different Surface Treatment | Hot dipped galvanized (zinc coated: 220-260g/m2) |
| Hot dipped galvanized (zinc coated:60-70g/m2) | |
| Electro galvanized (zinc coated: 15-20g/m2) |
Feature of woven filed fence:
Specification List:
| Code | Inner Wire Guage | Top & Bottom Wire Guage | Wire Spacing | Fence Height | Roll Length | Roll Weight |
| 1 | 9 | 9 | 6" | 47" | 330' | 396lbs |
| 2 | 9 | 9 | 12" | 47" | 330' | 295lbs |
| 3 | 11 | 9 | 6" | 32" | 330' | 210lbs |
| 4 | 11 | 9 | 6" | 39" | 330' | 241lbs |
| 5 | 11 | 9 | 6" | 47" | 330' | 290lbs |
| 6 | 11 | 9 | 12" | 39" | 330' | 185lbs |
| 7 | 11 | 9 | 12" | 47" | 330' | 208lbs |
| 8 | 12.5 | 10 | 6" | 26" | 330' | 128lbs |
| 9 | 12.5 | 10 | 6" | 32" | 330' | 148lbs |
| 10 | 12.5 | 10 | 6" | 39" | 330' | 169lbs |
| 11 | 12.5 | 10 | 6" | 47" | 330' | 192lbs |
| 12 | 12.5 | 10 | 12" | 32" | 330' | 116lbs |
| 13 | 12.5 | 10 | 12" | 39" | 330' | 131lbs |
| 14 | 12.5 | 10 | 12" | 47" | 330' | 146lbs |
| 15 | 14.5 | 11 | 6" | 32" | 330' | 90lbs |
| 16 | 14.5 | 11 | 6" | 39" | 330' | 102lbs |
| 17 | 14.5 | 12.5 | 6" | 39" | 330' | 98lbs |
| 18 | 14.5 | 12.5 | 6" | 47" | 330' | 111lbs |
| 19 | 12.5 | 10.5 | 6" | 39" | 330' | 174lbs |
| 20 | 12.5 | 10.5 | 6" | 47" | 330' | 198lbs |
| 21 | 11 | 9 | 9" | 42" | 330' | 193lbs |
| 22 | 11 | 9 | 9" | 48" | 330' | 217lbs |
| 23 | 13 | 10.5 | 6" | 39" | 330' | 151lbs |
| 24 | 13 | 10.5 | 6" | 47" | 330' | 173lbs |
