|Item:||Iron Wire Welded Wire Fence||Frame Finishing:||PVC Coated|
|Wire Material:||Galvanized Steel Wire||Post Types:||Peach Post, Round Post, Square Post|
|Wire Diameter:||3-6mm||Mesh Aperture:||50-200mm|
|Application:||Garden Fence, Highway Fence, Sport Fence, Farm Fence||Keyword:||Welded Wire Mesh Fence|
3mm welded wire mesh fence,
powder spraying welded wire mesh fence,
3mm black wire mesh fence

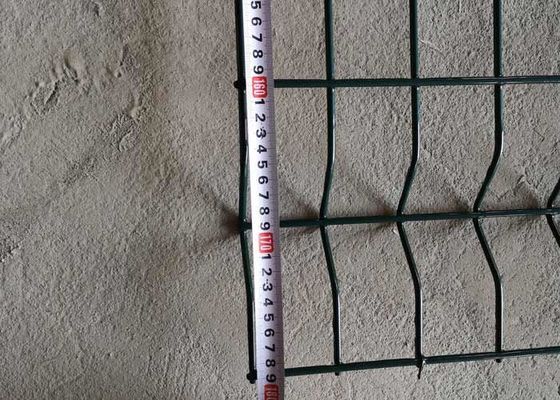

Powder Spraying Iron Netting Wire Mesh Fence
The Wire Mesh Fence is made of low-carbon steel wire and aluminum magnesium alloy wire by plastic spraying, weaving and welding;
The grid structure is simple, convenient for transportation and installation, which is not limited by topographic relief, especially for mountainous, sloping and multi curved areas.
The product is firm and durable, the price is medium and low, and is suitable for large area use.
It has the advantages of beauty, durability, no deformation and fast installation. It is an ideal metal guardrail product. It can not only make a long-term mesh wall, but also be used as a temporary isolation net. It can be realized by using different column fixing methods.
Specification of wire mesh fence
Mesh Size (mm)
50x100, 50x150, 50x200,55x100,55x200
Panel Size (m)
2x0.63, 2x0.83, 2x1.03, 2x1.23, 2x1.43, 2.5x1.63, 2.5x1.83, 2.5x2.03, 2.5x2.23, 2.5x2.43
Post Size (mm)
50x70, 70x100, 50x50, 60x60, (square hole) φ32,36,38,40,42,48(round post diameter)
Wire Diameter (mm)
3-6mm as customer’s request
Green, blue, black, white, yellow,etc.
Peach post, square. Holland, T-type, Y-type post
Modular fencing system
Panel size (L*H) mm
Post height mm
Number of bending folds
Surface Treatment could be Galvanized or PVC coated.
NOTE: There’re common specifications of products. Non-standard can also be customized as customer's request.
1. Plastic coated wire diameter: 3.8mm, 4.0mm, 4.5mm, 5.0mm
2. Mesh: 45mmx45mm, 50mmx50mm, 55mmx55mm, 60mmx60mm
3. Dimensions: 2500mmx3000mm, 3000mmx4000mm, 4000mm x4000mm
4. Column: 75 / 2mm diameter steel pipe
5. Transverse column: 48 / 2mm diameter steel pipe
6. Connection mode: clamping
7. Anti corrosion treatment: plastic dipping and plastic wrapping
