High Strength Hesco Barrier Hot Dip Galvanized Mobile Defensive Barrier Wall

Product Details

Place of Origin: Anping,China

Brand Name: Bingze

Certification: ISO9001-2015

Model Number: HB20231009

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 10 dollars

Packaging Details: Usually wrapped with shrink film and packed in pallet

Delivery Time: 10-15days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 8000 Set/Sets per Month

Get Best Price
Highlight:

High Strength Hesco Barrier

,

Hot Dip Galvanized Defensive Barrier Wall

,

Mobile Hesco Barrier

Product Name:
Hesco Barrier
Product Aperture:
50mm*50mm
Product Hesco Box Size:
200x100x50 Welded Hesco
Product Hole Shape:
Hexagonal
Wire Gauge:
2.0-4.5mm
Product Usage:
Road
Geotextile Color:
Dust Yellow,military Green,white,gray
Material:
Galvanized Iron Wire
Product Name:
Hesco Barrier
Product Aperture:
50mm*50mm
Product Hesco Box Size:
200x100x50 Welded Hesco
Product Hole Shape:
Hexagonal
Wire Gauge:
2.0-4.5mm
Product Usage:
Road
Geotextile Color:
Dust Yellow,military Green,white,gray
Material:
Galvanized Iron Wire
High Strength Hesco Barrier Hot Dip Galvanized Mobile Defensive Barrier Wall

High Strength Hot-Dip Galvanized Mobile Defensive Barrier Wall Hesko Barrier

                                                     Products    Description

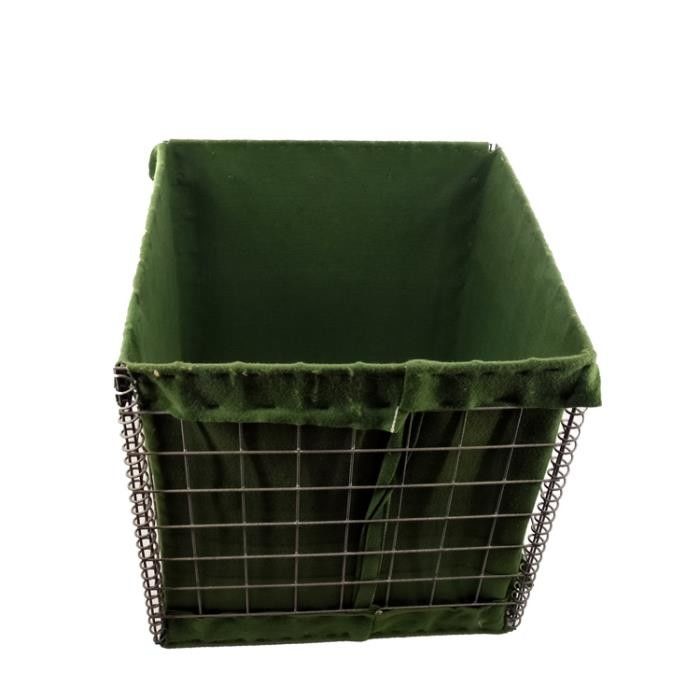

Defensive barriers
Defensive barriers are also known as Blast Wall Barrier, Defensive Bastion, etc. It is a prefabricated multi-cellular system made
of Golfan/hot-dip galvanized welded gabion, lined with non-woven geotextiles.It can be filled with sand,earth, cement, stones and
are widely used in fortifications and flood control.
1 ......... Spiral-hinged corners
2 ......... Non-woven geotextile liner
3 ......... Welded mesh frame
4.......... Available in beige or green

Product     Specification
MODEL
HEIGHT
(METER)
WIDTH
(METER)
LENGTH
(METER)
NUMBER OF CELLS
MIL 1/MIL 1R
1.37
1.06
10.00
5+4=9 CELLS
MIL 2/MIL 2R
0.61
0.61
1.22
2 CELLS
MIL 3/MIL 3R
1.00
1.00
10.00
5+5=10 CELLS
MIL 4/MIL 4R
1.00
1.52
10.00
5+5=10 CELLS
MIL 5/MIL 5R
0.61
0.61
3.05
5 CELLS
MIL 6/MIL 6R
1.68
0.61
3.05
5 CELLS
MIL 7/MIL 7R
2.21
2.13
27.74
5+4+4=13 CELLS
MIL 8/MIL 8R
1.37
1.22
10.00
5+4=9 CELLS
MIL 9/MIL 9R
1.00
0.76
9.14
6+6=12 CELLS
MIL 10/MIL 10R
2.21
1.52
30.50
5+5+5+5=20 CELLS
MIL 11/MIL 11R
1.22
0.30
1.22
2 CELLS
MIL 12/MIL 12R
2.13
1.06
33.00
5+5+5+5+5+5=30 CELLS
MIL 19/MIL 19R
2.74
1.06
3.18
6 CELLS
"R" means recoverable barrier Mil, every single cell can be opened by removing just one pin.
Material & surface treatment:
Galvanized steel wire or Galfan/zinc-5%aluminum wire
Wire diameter:
4.0mm- 6.0mm
Aperture:
76.2*76.2mm
Non-woven geotextile
200g/m2, 300g/m2, 400g/m2
                                                           Product     Process
1. Material: Low Carbon Steel Wire, Q 195 or Q 235
2. Raw Material Treatment: Straight Wire by Machine
3. Welding: form to welded wire mesh panel
4. Spiral Wire: use machine make straight wire into Spiral Wire to connect mesh panel
5. Assemble Mesh Panel into Gabion Box
6. Cut Geotextile Cloth into suitable size to fit for gabion box
7. Fix geotextile cloth on the gabion box with nails.
8. Make package with wooden pallet
9. Loading containers into container by wooden pallet.
Our Hesco barrier is made from strengthened hot dipped galvanized or zinc-aluminium coated steel which delivers exceptional protection and stability against a range of attacks.
We choose the best thick, fire and UV resistant geotextiles, which will ensure heavy duty use, and long service life.
                                                              Applications
Typical applications include
1. Perimeter security and defence walls
2. Equipment revetments
3. Personnel and material bunkers
4. Observation points
5. Defensive firing positions
6. Entry control points
7. Guard posts
8. Explosives and contraband search areas
9. Highway checkpoints
10. Border crossing checkpoints
11. Protecting existing structures
12. Highway traffic management
13. Hostile vehicle mitigation
