Product Details:
Payment & Shipping Terms:
|
| Item Name: | Reinforcing Wire Mesh | Mesh Shape: | Square Or Rectangular |
|---|---|---|---|
| Type: | Welded Mesh | Aperture Size: | 100 Or 200mm |
| Wire Diameter: | 4 - 12 Mm | Maximum Size: | 2.4m X 6m |
| High Light: | concrete wire panels,steel reinforcing mesh |
||

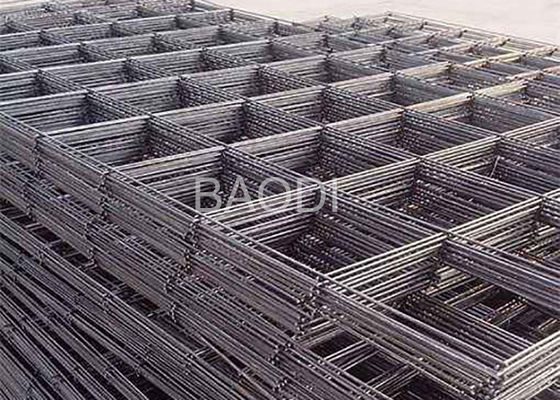

Reinforcing Wire Mesh Formed Square Grid By Rebar Used In Concrete
Product Introduction
Reinforcing wire mesh is a square grid of uniformly placed wires, welded at all intersections.
It's made of high quality rebar or thread bar material.
Rebar (abbreviation for reinforcing bar), when called reinforcing bar or reinforcing bar, is a kind of reinforcing bar or steel wire mesh, which is used as tension device in reinforced concrete and reinforced concrete structure to strengthen and help concrete under tension.
The reinforcing mesh could be custom made by our factory, it is available in various sizes and shapes, the panel could be cutted to the size as your request.
Feature
It has a strong and firm body, can bear the high pressure from the concrete and exterior.
The reinforcing mesh can save much man-haur, reduce the material cost in the process.
Usage
It is widely use in airport, tunnel, bridge, highway and wharf, also in the construction of building floor, wall, roof and balcony.
Specification List
| Reference No. | Main Wire | Cross Wire | Steel Area | Mass per Unit Area kg/m2 | |||
| Diameter mm | Pitch mm | Diameter mm | Pitch mm | Main mm2 | Cross mm2 | ||
| A63 | 4 | 200 | 4 | 200 | 63 | 63 | 0.99 |
| A98 | 5 | 200 | 5 | 200 | 98 | 98 | 1.54 |
| A142 | 6 | 200 | 6 | 200 | 142 | 142 | 2.22 |
| A193 | 7 | 200 | 7 | 200 | 193 | 193 | 3.02 |
| A252 | 8 | 200 | 8 | 200 | 252 | 252 | 3.95 |
| A318 | 9 | 200 | 9 | 200 | 318 | 318 | 4.99 |
| A393 | 10 | 200 | 10 | 200 | 393 | 393 | 6.16 |
| A475 | 11 | 200 | 11 | 200 | 475 | 475 | 7.46 |
| A565 | 12 | 200 | 12 | 200 | 565 | 565 | 8.88 |
| B196 | 5 | 100 | 7 | 200 | 196 | 193 | 3.05 |
| DA126 | 4 | 100 | 4 | 100 | 126 | 126 | 1.97 |
| DA196 | 5 | 100 | 5 | 100 | 196 | 196 | 3.08 |
| DA283 | 6 | 100 | 6 | 100 | 283 | 283 | 4.44 |
| DA385 | 7 | 100 | 7 | 100 | 385 | 385 | 6.04 |
| DA503 | 8 | 100 | 8 | 100 | 503 | 503 | 7.90 |
| DA636 | 9 | 100 | 9 | 100 | 636 | 636 | 9.98 |
| DA785 | 10 | 100 | 10 | 100 | 785 | 785 | 12.32 |
| DA950 | 11 | 100 | 11 | 100 | 950 | 950 | 14.92 |
| DA1131 | 12 | 100 | 12 | 100 | 1131 | 1131 | 17.76 |
Packing: on pallet or null packing
Production Process:
Wire Drawing → Wire Straightening & Wire Cutting → Welding→ Packing → Loading
Welding:
Welding is a manufacturing or engraving process that fuses materials (usually metals or thermoplastics) together by using high temperatures and cools them, resulting in fusion. Welding differs from low-temperature metal joining techniques such as brazing and soldering in that they do not melt the base metal.
