Anping County Baodi Metal Mesh Co.,Ltd.
Be your good wire mesh supplier & OEM.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Name: | Perforated Mesh | Material: | Stainless Steel, SS304, SS316 |
|---|---|---|---|
| Hole Pattern: | Round Hole Shape | Arrangement: | 45 / 60 / Straight Line |
| Application: | Filter Or Decorative Screen | Plate Technique: | Perforated |
| Process Service: | Bending / Cutting / Punching | Hole Size: | 0.8-25mm |
| Plate Thickness: | 0.5-3.5mm | Width & Length: | 1.5m X 3m Max. |
| High Light: | stainless 316 perforated steel mesh,perforated stainless steel mesh 316,round hole perforated steel mesh |
||

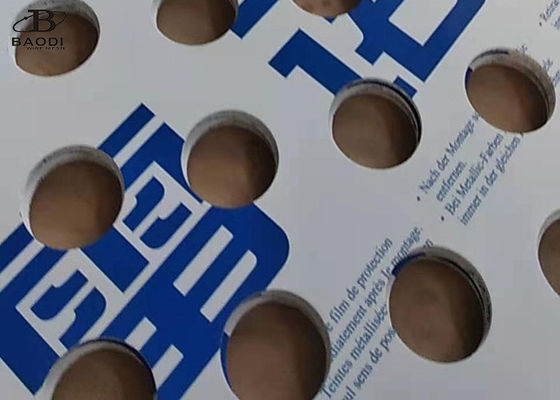

Round Hole Shape Stainless Steel 316 Perforated Mesh
Product Description
Perforated Mesh refers to punching holes of different shapes on the same material to meet different requirements. It can be used as environmental protection noise control barrier in traffic and municipal facilities such as expressway, railway and subway passing through urban areas, and sound-absorbing board for sound insulation and noise reduction of building walls, generator rooms, factory buildings and other noise sources.
Most of the raw materials used for punching mesh are: stainless steel, low carbon steel, galvanized PVC cold rolled coil, etc.
Hole type: rectangular hole, square hole, diamond hole, round hole, hexagon hole, cross hole, triangle hole, oblong hole, long waist hole, plum blossom hole, fish scale hole, pattern hole, five pointed star hole, irregular hole, bulging hole, etc.
It can be used for environmental protection noise control barrier in traffic and municipal facilities such as expressway, railway and subway passing through urban areas, sound insulation and noise reduction board for building walls, generator rooms, factory buildings and other noise sources, and sound absorption board for ceiling and wallboard of buildings.
| Perforated Mesh | |||
| Raw Material: low carbon steel,stainless steel,aluminum | |||
| Hole Shape | Round hole,square hole, slotted hole | Hole Diameter | 0.8-25mm |
| Sheet Width | Maximum width 1.5m | Sheet Length | Maximum length 3m |
| Sheet Thickness | 0.5mm-3.5mm | Packing | Plastic film inside,pallet outside |
| Plate material | Thickness of metal(mm ) | Hole Dia.(mm) | Pitch (mm) | Sheet Width(m) | Sheet Length(m) | Porosity (%) | Weight (kg/m2) |
| Steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5 | 5 | 8.0 | 1 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
| Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 | 4.23 |
Variety Hole Pattern can be customized
