Product Details:
Payment & Shipping Terms:
|
| Name: | Round Hole Perforated Mesh | Material: | SS304, SS316,Aluminum |
|---|---|---|---|
| Hole: | Round Hole | Hole Staggered: | 45 / 60 / Straight Line |
| Application: | Ceiling, Filter Or Decorative Screen | Plate Technique: | Perforated / Punching |
| Process Service: | Bending / Cutting / Punching | Hole Size: | 0.8mm - 25mm |
| Sheet Thickness: | 0.5-3.5mm | Width * Length: | 1m * 2m Usually |
| High Light: | ceiling perforated stainless steel mesh,round hole perforated stainless steel mesh,0.8mm hole perforated stainless steel mesh |
||

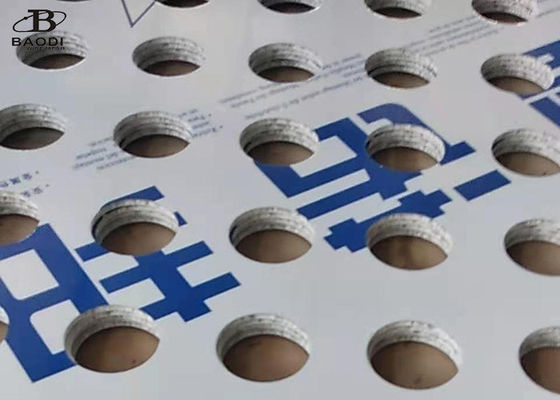

Round Hole Steel Plate Stainless Steel Ceiling Perforated Mesh
Product Description
Perforated Mesh refers to punching holes of different shapes on the same material to meet different requirements.
Most of the raw materials used for perforated mesh are: stainless steel, low carbon steel, aluminum, etc.
Hole Pattern: rectangular hole, square hole, diamond hole, round hole, hexagon hole, cross hole, triangle hole, oblong hole, long waist hole, plum blossom hole, fish scale hole, pattern hole, five pointed star hole, irregular hole, bulging hole, etc.
| Round Hole Perforated Mesh | |||
| Raw Material: low carbon steel,stainless steel,aluminum | |||
| Hole | Round hole,square hole, slotted hole | Hole Diameter | 0.8-25mm |
| Sheet Width | Maximum width 1.5m | Sheet Length | Maximum length 3m |
| Sheet Thickness | 0.5mm-3.5mm | Packing | Plastic film inside,pallet outside |
| Raw material | Thickness of metal(mm ) | Hole Dia.(mm) | Pitch (mm) | Sheet Width(m) | Sheet Length(m) | Porosity (%) | Weight (kg/m2) |
| Carbon steel | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5 | 5 | 8.0 | 1 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
| Stainless steel | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
| Aluminum | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 | 4.23 |
Application:
Perforated Mesh can be used as sound-absorbing material for ceiling and wallboard of buildings.
It can be used for environmental protection noise control barrier in traffic and municipal facilities such as expressway, railway and subway passing through urban areas, sound insulation and noise reduction board for building walls, generator rooms, factory buildings and other noise sources, and sound absorption board for ceiling and wallboard of buildings.
Variety Hole Pattern Display:
