Product Details
Place of Origin: Anping,China
Brand Name: Bingze
Certification: ISO9001-2015
Model Number: HB20231009
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 10 dollars
Packaging Details: Usually wrapped with shrink film and packed in pallet
Delivery Time: 10-15days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 8000 Set/Sets per Month
Product Name: |
Hesco Barrier |
Wire Gauge: |
4mm, 5mm |
Mesh Size: |
50 X 50mm, 75 X 75mm. 76.2 X 76.2mm. 50 X 100mm, 100 X 100mm, Ect. |
Geotextile Gramweight: |
300g/m2 |
Material: |
Hot-dipped Galvanized Steel Wire Or Zinc-aluminum Alloy Steel Wires |
Product Wire Diameter: |
4 Mm Or 5 Mm |
Geotextile Color: |
White, Beige, Military Green And Other Customized Colors. |
Geotextile: |
2 Mm Heavy Duty Non-woven Polypropylene |
Product Name: |
Hesco Barrier |
Wire Gauge: |
4mm, 5mm |
Mesh Size: |
50 X 50mm, 75 X 75mm. 76.2 X 76.2mm. 50 X 100mm, 100 X 100mm, Ect. |
Geotextile Gramweight: |
300g/m2 |
Material: |
Hot-dipped Galvanized Steel Wire Or Zinc-aluminum Alloy Steel Wires |
Product Wire Diameter: |
4 Mm Or 5 Mm |
Geotextile Color: |
White, Beige, Military Green And Other Customized Colors. |
Geotextile: |
2 Mm Heavy Duty Non-woven Polypropylene |

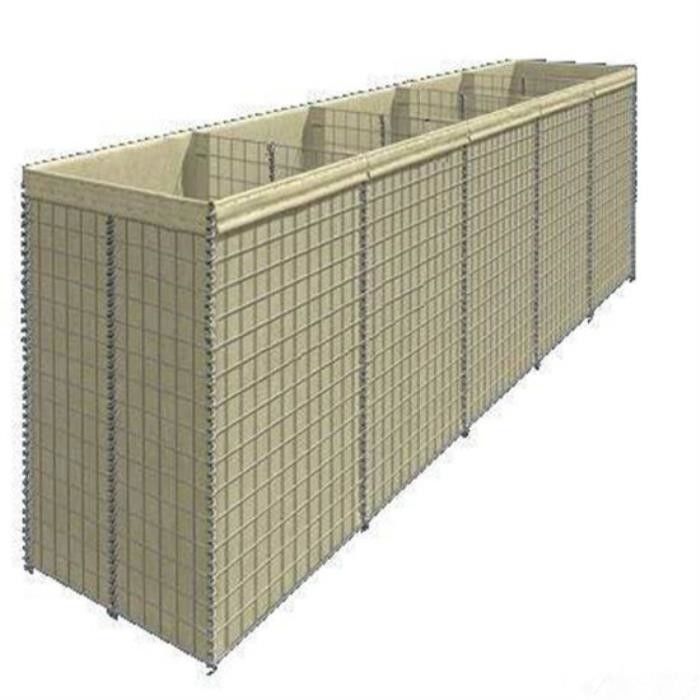

3''X3'' Welded Hesco Gabion Baskets Heavy Duty Wear Resisting
Defence barrier also named as defence bastion, defense wall, sand cage, welded gabion box, Hesco barrier, defensive barrier etc.The Hesco barrier is a prefabricated,multi-cellularsystem, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the providedjoining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended,it is filled into sand,stone,then hesco barrier like a defence wall or bunker,it is widely used for flood control.
| Color Of Geotextile | Grey, Green And Sand etc |
| Gram Weight Of Geotextile | 250g/m2, 300g/m2 etc |
| Material | Galvanized steel wire or Galfan |
| Wire Diameter | 4.0mm - 6.0mm |
| Aperture | 75*75mm 76.2*76.2mm 80*80mm etc |
Product Specification ---------------------------------------------------------------------------------------------------------------------------------------------------------
|
Standard sizes
|
Height
|
Width
|
length
|
Cells
|
|
MIL1
|
54''(1.37m)
|
42''(1.06m)
|
32'9''(10m)
|
4+5 cells
|
|
MIL2
|
24''(0.61m)
|
24''(0.61m)
|
4'(1.22m)
|
2 cells
|
|
MIL3
|
39''(1.00m)
|
39''(1.00m)
|
32'9''(10m)
|
5+5 cells
|
|
MIL4
|
39''(1.00m)
|
60''(1.52m)
|
32'9''(10m)
|
5+5 cells
|
|
MIL5
|
24''(0.61m)
|
24''(0.61m)
|
10'(3.05m)
|
5 cells
|
|
MIL6
|
66''(1.68m)
|
24''(0.61m)
|
10'(3.05m)
|
5 cells
|
|
MIL7
|
87''(2.21m)
|
84''(2.13m)
|
91'(27.74m)
|
4+4+5 cells
|
|
MIL8
|
54''(1.37m)
|
48''(1.22m)
|
32'9''(9.14m)
|
4+5 cells
|
|
MIL9
|
39'(1.00m)
|
30''(0.76m)
|
30'(9.14m)
|
6+6 cells
|
|
MIL10
|
87''(2.21m)
|
60''(1.52m)
|
100'(30.5m)
|
5+5+5+5 cells
|
|
MIL11
|
48''(1.22m)
|
12''(0.3m)
|
4'(1.22m)
|
4 cells
|
|
MIL12
|
84''(2.13m)
|
42''(1.06m)
|
108'(33m)
|
5+5+5+5+5+5 cells
|
|
MIL 19
|
108''(2.74m)
|
42''(1.06m)
|
10'5''(3.18m)
|
3 cells
|
|
Wire diameter
|
3.85mm,4mm,5mm etc
|
|||
|
Mesh Size
|
75mmx75mm etc
|
|||
|
Spring wire diameter
|
3mm,4mm,5mm etc
|
|||
|
Panel Finish
|
Hot dipped galvanized or Galfan coated
|
|||
|
Geotextile
|
Heavy duty non-woven polypropylene, color can be white, beige-sand, olive green, etc
|
|||
|
Packing Wrapped with shrink film or packed in pallet
|
||||
|
Technical Specification for Geotextile Fabric
|
||||
|
Color
|
Beige sand,Olive green,Grey
|
|||
|
Mass(g/sqm)
|
250,300,350
|
|||
|
Tensile strength
|
16kN
|
|||
|
Tear Strength
|
0.42kN
|
|||
|
CBR Puncture
|
3.1kN
|
|||
|
UV strength retention
ASTM D4355
|
50% at 500hours
(5 years use life in common environment) |
|||
|
70% at 500hours
(10 years use life in common environment) |
||||
Product Application -------------------------------------------------------------------------------------------------------------------------------------------------
Packing & Delivery ---------------------------------------------------------------------------------------------------------------------------------------------------
Defensive Barriers Packaging:
Defensive barrier packing on pallet then wrapped with plastic film outside .
Besides, customers' request are also available.
Company Profile --------------------------------------------------------------------------------------------------------------------------------------------------------
Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. It is a manufacturer integrating production, processing, distribution and wholesale. The main products include galvanized welded wire mesh,stainless steel welded wire mesh,PVC welded wire mesh,crimped wire mesh,galvanized woven wire mesh,stainless steel woven wire mesh,chain link fence,steel fence,welded wire mesh fence panels,PVC euro fence,358 anti-climb fence,razor wire,Hesco Barrier and so on.
Since its beginning,we have been working at four points, they are High Quality,Quick Delivery,Better Price and Thorough Service,Rely on the product quality and our credit standing, we have got favourable comments from the customers.
The company introduces precise making machines and technics,combinning scientific inner managing method and quality control system.Since the year it was established ,we developed our powder and credit standing and got reliances of our customers in home and abroad.Our products is checking by very high standeard, and the qualified ones leaved the factory to the whole county an some aabroad countries,such as Southeast Asia,Middle East,Ameria,Japan,and some Africa countries.
