Product Details
Place of Origin: Anping,China
Brand Name: Bingze
Certification: ISO9001-2015
Model Number: HB20231009
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 10 dollars
Packaging Details: Usually wrapped with shrink film and packed in pallet
Delivery Time: 10-15days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 8000 Set/Sets per Month
Product Name: |
Hesco Barrier |
Aperture: |
50mm*50mm |
Hesco Box Size: |
200x100x50 Welded Hesco |
Hole Shape: |
Square |
Feature: |
Easily Assembled |
Product Geotextile: |
Non Woven Geotextile With 300g/m2 |
Geotextile Color: |
Dust Yellow,military Green,white,gray |
Geotlxtile Thickness: |
3mm |
Product Name: |
Hesco Barrier |
Aperture: |
50mm*50mm |
Hesco Box Size: |
200x100x50 Welded Hesco |
Hole Shape: |
Square |
Feature: |
Easily Assembled |
Product Geotextile: |
Non Woven Geotextile With 300g/m2 |
Geotextile Color: |
Dust Yellow,military Green,white,gray |
Geotlxtile Thickness: |
3mm |

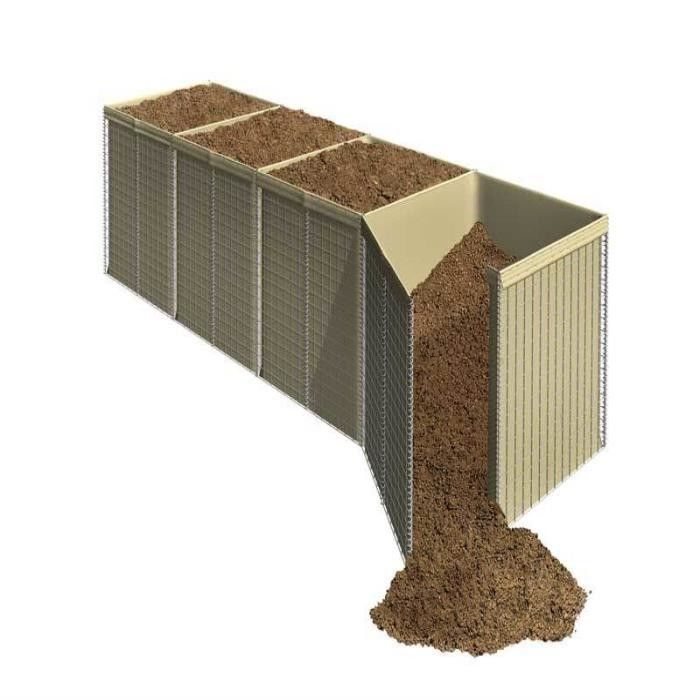

300g Geotextile Military Sand Wall Hesco Barrier Welded hesco bastion mil 1
Hesco barrier are made from welded wire mesh panels connected by spirals/helicals assembled with spacers/stiffeners.
mil Barriers Description:
1m Unit x 5 Cell
(overall size 1m x 1m x 5m)
Defence Barriers (DB) also known as hesco barrier Units consisting of five Cells connected together. Each cell of DB measuring 1M high, 1M wide and 1M length and each Unit compromises 5 Cells together to form a structure 1M high 1M wide and 5M length.The units must contain 5 individual cells which are joined to form a 5m long barrier and can be extended to required length by linking with nearby unit through easily fixable linking materials.This structure when filled with suitable materials acts as a protective barrier for Small arms and large scale Improvised Explosive Device (IED) attack.
1.37m Unit x 10 Cell Unit
(overall size 1.37m x 1.06m x 10m)
Defense Barriers (DB) Units consisting of ten Cells connected together. Each cell of DB measuring 1.37m high, 1.06m wide and 1m length and each Unit compromises 10 Cells together to form a structure 1.37m high 1.06m wide and 10m length.
Color:
The unit should be either Olive green or Tan Brown in colour.
Product Specification -------------------------------------------------------------------------------------------------------------------------------------------------------
|
Standard sizes
|
Height
|
Width
|
length
|
Cells
|
|
MIL1
|
54''(1.37m)
|
42''(1.06m)
|
32'9''(10m)
|
4+5 cells
|
|
MIL2
|
24''(0.61m)
|
24''(0.61m)
|
4'(1.22m)
|
2 cells
|
|
MIL3
|
39''(1.00m)
|
39''(1.00m)
|
32'9''(10m)
|
5+5 cells
|
|
MIL4
|
39''(1.00m)
|
60''(1.52m)
|
32'9''(10m)
|
5+5 cells
|
|
MIL5
|
24''(0.61m)
|
24''(0.61m)
|
10'(3.05m)
|
5 cells
|
|
MIL6
|
66''(1.68m)
|
24''(0.61m)
|
10'(3.05m)
|
5 cells
|
|
MIL7
|
87''(2.21m)
|
84''(2.13m)
|
91'(27.74m)
|
4+4+5 cells
|
|
MIL8
|
54''(1.37m)
|
48''(1.22m)
|
32'9''(9.14m)
|
4+5 cells
|
|
MIL9
|
39'(1.00m)
|
30''(0.76m)
|
30'(9.14m)
|
6+6 cells
|
|
MIL10
|
87''(2.21m)
|
60''(1.52m)
|
100'(30.5m)
|
5+5+5+5 cells
|
|
MIL11
|
48''(1.22m)
|
12''(0.3m)
|
4'(1.22m)
|
4 cells
|
|
MIL12
|
84''(2.13m)
|
42''(1.06m)
|
108'(33m)
|
5+5+5+5+5+5 cells
|
|
MIL 19
|
108''(2.74m)
|
42''(1.06m)
|
10'5''(3.18m)
|
3 cells
|
| Product Name | Barrier Bastion Welded Gabion Box Explosion-Proof Wall or Hesco Barrier |
| Material | Hot-dipped Galvanized Steel Wire,Galfan Wire(Zinc-Aluminum Steel Wire) |
| Wire Diameter | 4mm,5mm |
| Spring Diameter | 4mm |
| Mesh Hole | 3’’*3’’ or 75mm*75mm |
| Panel Size | 0.61m*0.61m,1m*1m,1.06m*1.37m,2.21m*2.13m,etc. |
| Geotextile | Usually 300g/m,other requirement can be customized. |
| Finish | Hot-dipped Galvanized,Galfan Coated. |
Welded Mesh size: 100 x 50 mm, 50 x 50mm,100 x 100mm and 3' x 3'.
Material wire: 3.0mm - 6.0mm with galvanized coated or galfan coated.
Normal gabion box size:
2.0 x 1.0 x 1.0m, 2.0 x 1.0 x 0.5m, 2.0 x 0.5 x 0.5m, 2.0 x 0.3 x 0.3m,
1.0 x 1.0 x 1.0m, 1.0 x 1.0 x 0.5m, 1.0 x 0.5 x 0.5m, 0.5 x 0.5 x 0.5m,
1.2 x 0.6 x 0.6m, and so on.
Product Installation ----------------------------------------------------------------------------------------------------------------------------------------------
Steps of installating welded gabion basket:
Each set of gabion box includes: Corner stiffeners,spiral binders and welded wire mesh panels.
Step 1. Place ends, diaphragms, front and back panels uprightly on the bottom of wire mesh.
Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
Step 4. Gabion box filled with stone by hand or with shovel.
Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with stones.
Product Application ---------------------------------------------------------------------------------------------------------------------------------------------------
Hesco barrier applications:
Control and guide of water or flood.
Flood bank or guiding bank.
Security Barrier and Defence Wall
Water and soil protection.
Bridge protection.
Strengthening structure of soil.
Protecting engineering of seaside area.
Packaging & Shipping -------------------------------------------------------------------------------------------------------------------------------------------------
Hesco Sand Filled Barriers common package:
1. several pieces in bundle+pallet+plastic film.
2. one set/carton, then on pallet.
3. other packing according to buyer's requirement.
