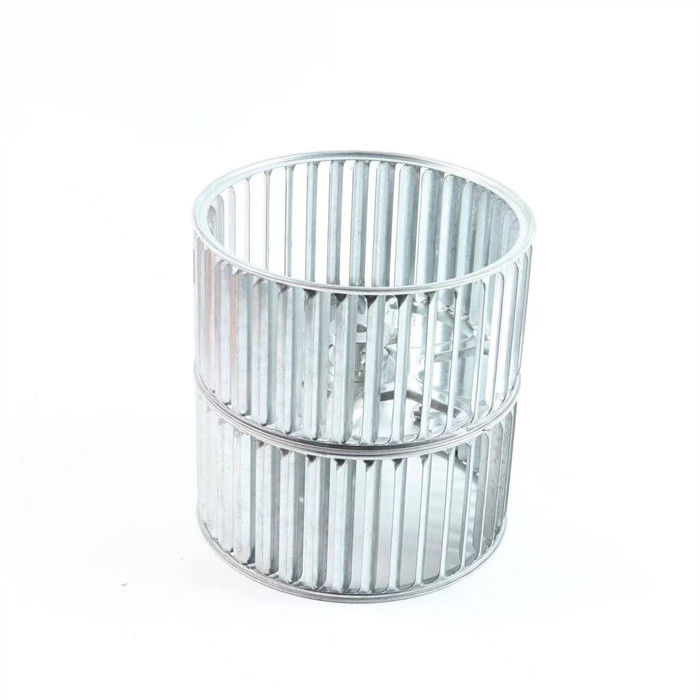

Galvanized Impeller Curved Centrifugal Blower For Fresh Air Ventilation Centrifugal Fan

Product Details

Place of Origin: China

Brand Name: Bingze

Certification: ISO2024042300052

Model Number: BZ20240423

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 30$-80$

Packaging Details: plastic bag, wooden box

Delivery Time: 5-8 days

Payment Terms: T/T

Supply Ability: 100000PCS

Get Best Price
Highlight:

Fan Curved Centrifugal Blower

,

Fresh Air Ventilation Curved Centrifugal Blower

,

Galvanized Impeller Curved Centrifugal Blower

Warranty:
1 Year
Customized Support:
OEM, ODM
Product Name:
Forward Curved Impeller
Size:
250mm-1000mm
Material:
Galvanized Steel
Impeller Type:
Forward Curved
Feature:
High Volume High Pressure
Keywords:
Centrifugal Fan Parts
Application:
Blower
Function:
Ventilaion
Warranty:
1 Year
Customized Support:
OEM, ODM
Product Name:
Forward Curved Impeller
Size:
250mm-1000mm
Material:
Galvanized Steel
Impeller Type:
Forward Curved
Feature:
High Volume High Pressure
Keywords:
Centrifugal Fan Parts
Application:
Blower
Function:
Ventilaion
Galvanized Impeller Curved Centrifugal Blower For Fresh Air Ventilation Centrifugal Fan
Product Description
Material: Impeller made of galvanized sheet steel Technical features: Control lnput 0-10V DC/PWM Tach output Protection: Locked-rotor protection, Current limited, Under-voltage and over-voltage lockout protection, Soft start Type of protection: IP42 Motor insulation class: "B" Direction of rotation: Anticlockwise, see on the leads Approval: CCC,CE Amb.Temp: -25~60℃
Types :
180mm AC 115V 230V single inlet forward curved fan impeller for air purifier units
Voltage Ranges :
230V
Frequency :
50/60 Hz
Diamter :
180mm ( impeller diameters )
Motor Types :
BLEC External Rotor Motor
Speed Control :
0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:
-25℃~ +60℃
Certificating :
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:
IP44 ,IP54,IP55
Electronic Protection:
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start

Working & Storage
Operating temperature:-25~60℃;Operating humidity:0 ~ 85 % RH
Storing temperature:-25 ~ 70℃;Storing humidity:0 ~ 95 % RH
Applicable altitude range:<1000m
Balancing
According to JB/T 9101-1999 requirements G6.3
Product Standards :
LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

Mainly Applications
AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Medical equipments/Ventilation SYSTEM/ Equipments Cooling /
Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans
Product Parameters
Model
Voltage
(VAC)
Air Flow
(m3/h)
Speed
(rpm)
Power Input
(W)
Current
(A)
Static Pressure (Pa)
K3A160-DAN-92
12
490
1600
70
5.20
500
K3A160-DCN-92
24
550
1750
105
4.40
600
K3A160-DFN-92
48
550
1750
105
2.90
600
Packing & Delivery
Galvanized Impeller Curved Centrifugal Blower For Fresh Air Ventilation Centrifugal Fan 0
Galvanized Impeller Curved Centrifugal Blower For Fresh Air Ventilation Centrifugal Fan 1

Double Inlet Replacement Forward Curved Centrifugal Fan Impeller Blower Wheels are packed in cartons.

Contact Us

Anping Bingze Wire Mesh Products Co., Ltd.
We are professional in ventilation duct system fittings, we can supply round pipe pressed bend,kinds of duct ring clamp,electric or manual dampers,coupling,air duct reducers,pressed elbow halves,kinds of air duct diffuser and grilles,impeller fan blower wheels and so on.

Any need and interest,feel free to contact us to get the samples and latest prices.

Tel: +0086 16633836886
Whatsapp: +8618330151631
Mail: wiremesh@apbingze.com

FAQ
1. who are we?
We are based in Hebei, China, start from 2008,sell to North America(30.00%),Southeast Asia(20.00%),Eastern Europe(20.00%),South America(20.00%),Western Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample of Double Inlet Replacement Forward Curved Centrifugal Fan Impeller Blower Wheel before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
HVAC SYSTEM,HVAC pressed air duct bends,Ventilation ducts,Insulation Duct pipe bends,Dust collection flange bends,air duct diffuser and grilles,Double Inlet Replacement Forward Curved Centrifugal Fan Impeller Blower Wheel and so on.

4. why should you buy from us not from other suppliers?
1.Dedicated attitude and attention on Double Inlet Replacement centrifugal fan Blower Wheels industry; 2.Specialized in stamping, casting, forging process; 3.Completed product delivery system; 4.Required products by reasonable cost; 5.Trustworthy business partner, perfect after-sale service!

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Cash,Escrow;
Language Spoken:English,Chinese.
