| Item: | Chain Link Fence Mesh Fabric | Raw Material: | Low Carbon Steel Wire, Mild Steel Wire |
|---|---|---|---|
| Surface Treatment: | PVC Coated, Galvanized | Wire Diameter: | 1.5mm-4mm |
| Mesh Opening: | 40mm, 50mm, 60mm | Height: | 0.9m-2.1m |
| High Light: | chain link fence,chain wire fencing |
||

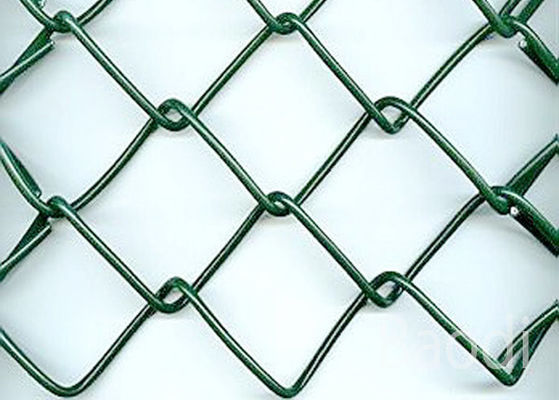

Green PVC Coated Chain Link Fence Mesh Fabric Mesh Fabric For Stadium Fence
Product Description
Chain Link Fence Mesh Fabric is also named cyclone fence or diamond wire mesh, with uniform diamond mesh holes.
It's a kind of woven mesh made of high quality steel wire.
The surface treatment of Chain Link Fence Mesh Fabric is galvanized or PVC coated.
The wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire
immediately on one side and each "zag" with the wire immediately on the other.
This forms the characteristic diamond pattern seen in this type of fence.
Selvage Type:
Type 1: Twisted Selvage
The wire is twisted in to a barbed selvedge at both ends
Type 2: Knuckled Selvage
The wire is knuckled at both ends
Type 3: Twisted & Knuckled Selvage
The wire is knuckled at the bottom and twisted into a barbed selvedge at the top
Feature
Usage:
Chain Link Fence Mesh Fabric is used in Sports Field, Residential, River Banks, Animal Fencing, Garden,Airport etc.
It's also used in highway fencing, stadium fencing, machine protection, green belt fencing, zoo fencing, decoration and so on.
Residential
Chain Link Fence Mesh Fabric for residential are woven generally with metallic wire of galvanized iron, or with plastic coated galvanized wire.
Sports
Chain Link Fence Mesh Fabric are commonly used for sports because they are durable and easy to install.
Specification List
| PVC Coated Chain Link Fence Mesh Fabric | ||||||
| Mesh(mm) |
Wire Gauge(SWG) |
Wire Diameter(mm) |
Coil Dimension | Roll Size | ||
| Natural Volume | Fold Volume | Roll Height | Roll Length | |||
| 80x80 | 8 | 3.0/4.06 | 65 | 40 | 0.9m-2.1m | 5-30m |
| 60x60 | 9 | 2.6/3.66 | 59 | 38 | 0.9m-2.1m | 5-30m |
| 55x55 | 10 | 2.2/3.25 | 54 | 35 | 0.9m-2.1m | 5-30m |
| 50x50 | 10 | 2.2/3.25 | 49 | 35 | 0.9m-2.1m | 5-30m |
| 45x45 | 8 | 3.0/4.0 | 50 | 35 | 0.9m-2.1m | 5-30m |
| 40x40 | 10 | 2.2/3.25 | 45 | 34 | 0.9m-2.1m | 5-30m |
| 35x35 | 12 | 2.0/2.64 | 40 | 30 | 0.9m-2.1m | 5-30m |
| Galvanized Chain Link Fence Mesh Fabric | ||||||
| Mesh(mm) |
Wire Gauge(SWG) |
Wire Diameter(mm) |
Coil Dimension | Roll Size | ||
| Natural Volume | Fold Volume | Roll Height | Roll Length | |||
| 100x100 | 9 | 3.66 | 55 | 35 | 0.9m-2.1m | 5-30m |
| 80x80 | 10 | 3.25 | 57 | 38 | 0.9m-2.1m | 5-30m |
| 60x60 | 12 | 2.64 | 52 | 34 | 0.9m-2.1m | 5-30m |
| 50x50 | 12 | 2.64 | 49 | 33 | 0.9m-2.1m | 5-30m |
| 40x40 | 10 | 3.25 | 46 | 32 | 0.9m-2.1m | 5-30m |
| 30x30 | 12 | 2.64 | 42 | 34 | 0.9m-2.1m | 5-30m |
| 20x20 | 19 | 1.02 | 25 | 34 | 0.9m-2.1m | 5-30m |
| Material | Galvanized iron wire, aluminum alloy wire or PVC coated iron wire. | |||||
| Packing | Plastic film or weaving bag or pallet | |||||
| Note | There’re common specifications of products. Non-standard can also be customized. | |||||
