Home > products > Welded Wire Mesh Panels > 2x2 Galvanized Welded Wire Mesh Sheets 6mm Galvanised Mesh Panel

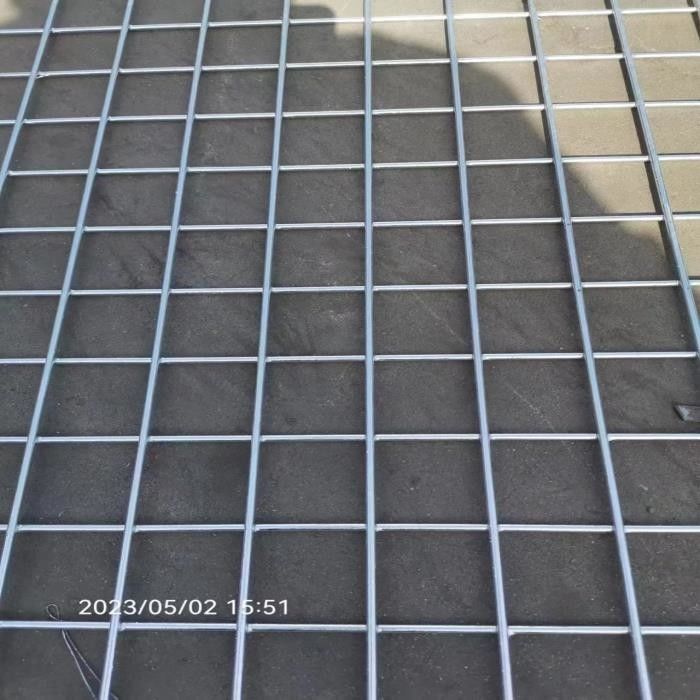

2x2 Galvanized Welded Wire Mesh Sheets 6mm Galvanised Mesh Panel

Product Details

Place of Origin: Anping,China

Brand Name: Bingze

Certification: ISO9001-2015

Model Number: GWWMP20230922

Payment & Shipping Terms

Minimum Order Quantity: 1000pieces

Price: 1-2 dollars per piece

Packaging Details: 1.Waterproof paper ,plastic bag 2.Bulk or with pallet

Delivery Time: 10-15days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 1000000 per week

Get Best Price
Highlight:

2x2 Galvanized Welded Wire Mesh Sheets

,

Galvanized Welded Wire Mesh Sheets 6mm

,

6mm Galvanised Mesh Panel

Product Name:
Galvanized Welded Wire Mesh Panels 6mm Welded Wire Mesh Sheets
Product Feature:
Corrosion Resistance
Packing:
Pallet
Length:
Customized
Usage:
Industry
Size:
Customized
Surface Treatment:
Hot Dipped Galvanized
Width:
0.1-2.5m/sheet
Product Name:
Galvanized Welded Wire Mesh Panels 6mm Welded Wire Mesh Sheets
Product Feature:
Corrosion Resistance
Packing:
Pallet
Length:
Customized
Usage:
Industry
Size:
Customized
Surface Treatment:
Hot Dipped Galvanized
Width:
0.1-2.5m/sheet
2x2 Galvanized Welded Wire Mesh Sheets 6mm Galvanised Mesh Panel

2x2 Galvanized Welded Wire Mesh Panels 6mm Welded Wire Mesh Sheets Sizes

Product Description

Product Description of Galvanized welded wire mesh panels:

Galvanized Welded Wire Mesh Panels is made with plain steel wire welded together in square opening, then going through the hot dipped zinc coating process.
Application: Suitable product for constructing animal cages, enclosure works, fabricating of wire containers and baskets, grills, partitions, machine protection fences, gratings and other construction applications.
Hot dipped zinc coated welded wire mesh panel is made in accordance to English Standard normally in regard to the production and zinc coating. The finished welded mesh offer flat and uniform surface, firm structure, good integrity. It offers the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.
Hot Dipped Galvanized After/Before Welding;
Electro Galvanized After/Before Welding;
PVC Coating With Green, Black, Color, Etc.
Welded Mesh made of Stainless Steel Wire.
Galvanized welded wire mesh panels specification ( Standard length: 30m / roll , Width : 0.3m - 2.5m )
Opening in inch
Wire diameter (bwg)
1/4 '' x 1/4 ''
22 , 23, 24
3/8 '' x 3/8 ''
19 , 20 , 21 , 22
1/2 '' x 1/2 ''
16 , 17 , 18 , 19 ,20 , 21 , 22 , 23
5/8 '' x 5/8 ''
18 , 19 , 20 , 21
3/4 '' x 3/4 ''
16 , 17 , 18 , 19 , 20 , 21
1 '' x 1 ''
16 , 17 , 18 , 19
1 '' x 1/2 ''
16 , 17 , 18 , 19 , 20 , 21
1 '' x 1/4 ''
14 , 15 , 16 , 18
1 '' x 2 ''
14 , 15 , 16
2'' x 2 ''
7, 8, 9 , 10 , 11,12
4'' x 4''
7, 8, 9 , 10 , 11,12
6'' x 6''
7, 8, 9 , 10 , 11,12
Product Characters of Galvanized Welded Wire Mesh Panels :
1 . Excellent heat resistant and high intensity .
2 . High strength and strong integration .
3 . Flat and smooth surface combined with firm structure .
4 . Perfect Anti - Rust Property .
5 . Stay Holistiv even cut into fragmented parts .
6 . Long Using Life
7 . Hot dipped galvanized after welded. Not black welded point, more zinc coated ensure it has better anti-rust and last longer. But it also lead to higher cost.
Product Application of Galvanized welded wire mesh panels:
It is very popular in breeding industry: Can be made into floor heating, contruction use, various animal cages or fences for breeding with its excellent anti-corrosion property. The zinc coating offers a kind of decorative outlook with its flat surface.
With first-class anti-corrosion property, it is widely used in mine sieving industries as sieving screen. The low carbon steel wire for making of hot-dipped welded wire mesh offers flexibility that can be made in many further fabrication applications.
2x2 Galvanized Welded Wire Mesh Sheets 6mm Galvanised Mesh Panel 0


2x2 Galvanized Welded Wire Mesh Sheets 6mm Galvanised Mesh Panel 1

2x2 Galvanized Welded Wire Mesh Sheets 6mm Galvanised Mesh Panel 2



 2x2 Galvanized Welded Wire Mesh Sheets 6mm Galvanised Mesh Panel 3

Product Specification
Product Name
Galvanized Welded Mesh Panels
Keywords
Galvanized Welded Wire Mesh Panel
Surface Treatment
PVC Coated, Hot Dipped Galvanized
Wire Gauge
2.0 - 4.0mm or Customized
Materials
Low-Carbon Iron Wire, Plastic Coated Iron Wire
Shape
Square
Standard Length
1 - 8 M
Width
0.5 - 3 M
Wire Diameter(mm)
Aperture (mm)
Width(m)
Length
Inch
MM
2.0mm-3.2mm
1"
25.4
0.914m-1.83m





The length does not limit
2.0mm-4.5mm
2"
50.8
0.914m-2.75m
2.0mm-6.0mm
3"
70.2
0.914m-2.75m
2.0mm-6.0mm
4"
101.6
0.914m-2.75m
2.0mm-6.0mm
5"
127
0.914m-2.75m
2.0mm-6.0mm
6"
152.4
0.914m-2.75m
2.0mm-6.0mm
7"
177.8
0.914m-2.75m
2.0mm-6.0mm
8"
203.2
0.914m-2.75m
                      Specification Of Galvanized Welded Wire Mesh Panel
Opening
Wire diameter
Inch
mm
BWG
mm
1" × 1"
25mmx25mm
14# - 11#
2.0mm - 3mm
2" × 1"
50mmx25mm
14# - 8#
2.0mm - 4mm
2" × 2"
50mmx50mm
14# - 8#
2.0mm - 4mm
3" × 2"
75mmx50mm
14# - 6#
2.0mm - 5mm
3" × 3"
75mmx75mm
14# - 6#
2.0mm - 5mm
4" × 2"
100mmx50mm
14# - 4#
2.0mm - 6mm
4" × 4"
100mmx100mm
14# - 4#
2.0mm - 6mm
5" × 5"
125mmx125mm
14# - 4#
2.0mm - 6mm
6" × 6"
150mmx150mm
14# - 4#
2.0mm - 6mm
Material: Low carbon steel wire
Surface treatment: Electro Galvanized, Hot dipped galvanized, PVC coated, Powder coated
Note: Special size and specifications can be made according to customers requires.
Package & Delivery

2x2 Galvanized Welded Wire Mesh Sheets 6mm Galvanised Mesh Panel 4

2x2 Galvanized Welded Wire Mesh Sheets 6mm Galvanised Mesh Panel 5

1. in bulk 2. plastic film or woven on both of the sides 3. on pallet 4. customized
Company Profile

Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. It is a manufacturer integrating production, processing, distribution and wholesale. The main products include galvanized welded wire mesh,stainless steel welded wire mesh,PVC welded wire mesh,crimped wire mesh,galvanized woven wire mesh,stainless steel woven wire mesh,chain link fence,steel fence,welded wire mesh fence panels,PVC euro fence,358 anti-climb fence,razor wire and so on.

Since its beginning,we have been working at four points, they are High Quality,Quick Delivery,Better Price and Thorough Service,Rely on the product quality and our credit standing, we have got favourable comments from the customers.

The company introduces precise making machines and technics,combinning scientific inner managing method and quality control system.Since the year it was established ,we developed our powder and credit standing and got reliances of our customers in home and abroad.Our products is checking by very high standeard, and the qualified ones leaved the factory to the whole county an some aabroad countries,such as Southeast Asia,Middle East,Ameria,Japan,and some Africa countries.



2x2 Galvanized Welded Wire Mesh Sheets 6mm Galvanised Mesh Panel 6



Certifications
2x2 Galvanized Welded Wire Mesh Sheets 6mm Galvanised Mesh Panel 7
FAQ



Q: Are you a manufacture?



A: Yes, we have specialized in this field for more than 9 years.



Q:How do you look at your customers?



A:They are not only our customers, but also our partners, we will work together to develop, win-win cooperation.



Q:Do you sell products only?



A:We not only sell products, we also provide services, we have a comprehensive after-sales service system.



Q: Do you provide sample?



A: The samples are provided free, but the customer need to pay the postage.After the customer place order, we will deduct the postage from the payment.



Q: What information should i provide,if i want a lowest quotation?



A: The specification of products, such as size, color, package and quantity.
