Drying Oven 304 Stainless Steel Conveyor Belt For Food Transportation

Drying Oven 304 Stainless Steel Conveyor Belt For Food Transportation

Product Description  ----------------------------------------------------------------------------------------------------------------------------------------------------

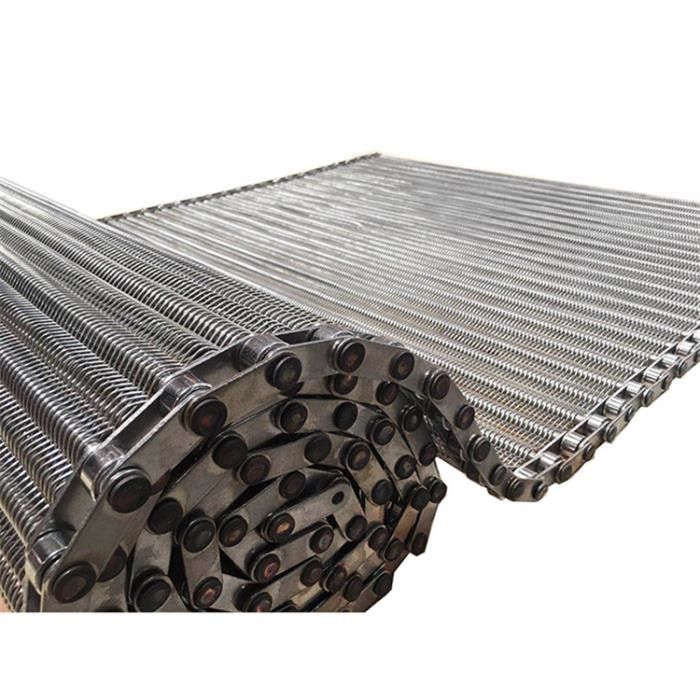

It is made of stainless steel spiral wires and then connected by rods and chains. Chain wire mesh belt is a conveyor belt driven by a chain, usually using a chain to drive a small shaft, and then using the small shaft to drive the belt. The belt is composed of curled wire and two belt rods on the left and right, also known as a large rod and a small rod. Insert the small shaft into the large belt rod, and the other end of the small shaft into the hole of the chain, so that the belt can be driven by the chain. The chain wire mesh belt runs smoothly and has low transmission torque.

Spiral mesh conveyor belt materials include: stainless steel 201, 304, 316, 316L, 314, galvanized steel, carbon steel, customers can choose according to different application fields.
Standard chain pitch: 25.4mm, 31.75mm, 38.1mm, 50.8mm, other sizes can be customized according to customer special requirements.

The minimum diameter of the spiral mesh conveyor belt is 1.5mm (the cross line should be equal to or greater than the size of the spiral line). For the width of the conveyor belt, we can make it according to the customer's requirements. There are many types of chains, and there are two ways to process the chain: welding the edges, and the other way is to install a split pin. Through this method, customers can easily replace the rod.

Product Specification  ---------------------------------------------------------------------------------------------------------------------------------------------------

Product Advantages ------------------------------------------------------------------------------------------------------------------------------------------------

1. It can be the delivery of granular materials, can also be carried into the delivery of items.
2. Suitable for high density transportation in small.
3. Smooth motion,force
4. Convenient installation and replacement,high cost,long service life.

Product Application ---------------------------------------------------------------------------------------------------------------------------------------------------

1. Fast frozen machine,baking machine, plane conveyor, screw conveyor.
2. Cleaning,sterilization,drying ,cooking,cooling and so on for food machine.
3. Losing bottle annealing,roast flower etc for glass machine .
4. Eachi kinds of pipeline transport.
5. Metal process:powder metallurgy, heat treatment ,hardening, sintering, brazing, roasting, brightening, blacking, bearing, carburizing high-temperature.
6. Washing machine,winding machine,drying machine, etc.

Product Packing ----------------------------------------------------------------------------------------------------------------------------------------------------------

Package:Usually it is wrapped in waterproof plastic bags and then placed in cardboard or plywood boxes, or customized packaging.

Company Profile ---------------------------------------------------------------------------------------------------------------------------------------------------

Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. It is a manufacturer integrating production, processing, distribution and wholesale. The main products include galvanized welded wire mesh,stainless steel welded wire mesh,PVC welded wire mesh,crimped wire mesh,galvanized woven wire mesh,stainless steel conveyor belt, stainless steel woven wire mesh,chain link fence,steel fence,welded wire mesh fence panels,PVC euro fence,358 anti-climb fence,razor wire,Hesco Barrier and so on.

Since its beginning,we have been working at four points, they are High Quality,Quick Delivery,Better Price and Thorough Service,Rely on the product quality and our credit standing, we have got favourable comments from the customers.

The company introduces precise making machines and technics,combinning scientific inner managing method and quality control system.Since the year it was established ,we developed our powder and credit standing and got reliances of our customers in home and abroad.Our products is checking by very high standeard, and the qualified ones leaved the factory to the whole county an some aabroad countries,such as Southeast Asia,Middle East,Ameria,Japan,and some Africa countries.
