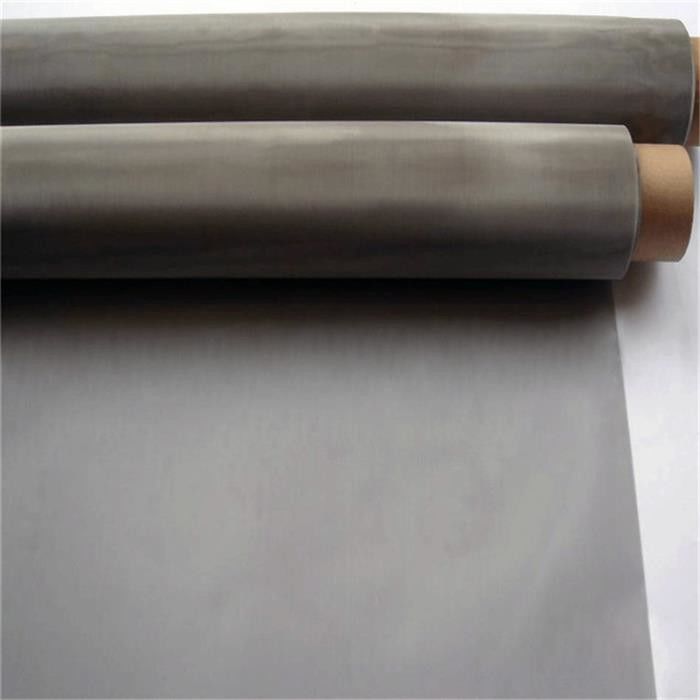

Customizable 304 316 316L Plain Weave Stainless Steel Wire Mesh Alkali Resistance

Product Details

Place of Origin: AnPing,China

Brand Name: Bingze

Certification: ISO9001-2015

Model Number: SS20230920

Payment & Shipping Terms

Minimum Order Quantity: 1roll

Price: 30dollars-50dollars

Packaging Details: 1.There are waterproof paper and carton pipe inside for support. 2.Then use wooden case / wooden pallets outside. 3.It also can be packaged according to your request.

Delivery Time: 12-15days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 8000rolls per month

Get Best Price
Highlight:

Customizable Stainless Steel Wire Mesh

,

Stainless Steel Wire Mesh Alkali Resistance

,

Customizable plain weave wire mesh

Product Name:
Stainless Steel Woven Wire Mesh
Processing Service:
Bending, Welding, Decoiling, Cutting, Punching
Product Feature:
Corrosion Resistance
Product Sample:
Avaliable
Product Certification:
ISO9001
Advantage:
Rich Experience
Hole Shape:
Square Hole
Special Specification:
Custom
Product Name:
Stainless Steel Woven Wire Mesh
Processing Service:
Bending, Welding, Decoiling, Cutting, Punching
Product Feature:
Corrosion Resistance
Product Sample:
Avaliable
Product Certification:
ISO9001
Advantage:
Rich Experience
Hole Shape:
Square Hole
Special Specification:
Custom
Customizable 304 316 316L Plain Weave Stainless Steel Wire Mesh Alkali Resistance

Customizable 304 316 316L Plain Weave Stainless Steel Wire Mesh Alkali Resistance

Products Description
Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
Inch MM Inch MM
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63
Product Images
Customizable 304 316 316L Plain Weave Stainless Steel Wire Mesh Alkali Resistance 0
Customizable 304 316 316L Plain Weave Stainless Steel Wire Mesh Alkali Resistance 1
Customizable 304 316 316L Plain Weave Stainless Steel Wire Mesh Alkali Resistance 2
Customizable 304 316 316L Plain Weave Stainless Steel Wire Mesh Alkali Resistance 3


What industries are stainless steel wire mesh used in ?
stainless steel woven wire mesh is widely used in daily use, petroleum, chemical, food, pharmaceutical, and classifiction, screening and screening of solid, liquid and gas in the fields of mining, metallurgy, aerospace, and mechanical manufacturing.
Product Specifications
Stainless steel Woven wire mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening.
Due to its own characteristics of stainless steel, the stainless steel woven wire mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance Corrosion. The product has the characteristics of acid and alkali resistance, temperature resistance, wear resistance and other properties, therefore, in recent years, stainless steel net is widely used in many different fields.
Customizable 304 316 316L Plain Weave Stainless Steel Wire Mesh Alkali Resistance 4
This is the most commonly used weaving type. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Customizable 304 316 316L Plain Weave Stainless Steel Wire Mesh Alkali Resistance 5
The wires of the weft and the warp inter cross two above and two below, inverting the intersections of the warp wire at an established distance and obtaining a rigid, stable and robust type of wire mesh fabric
Customizable 304 316 316L Plain Weave Stainless Steel Wire Mesh Alkali Resistance 6
The wires of the weft and the warp inter cross two above with a larger weft wire than the warp. Such kind of wire mesh allows a greater difference between the diameter and the number of weft and warp wire.
Product Details
Customizable 304 316 316L Plain Weave Stainless Steel Wire Mesh Alkali Resistance 7
Customizable 304 316 316L Plain Weave Stainless Steel Wire Mesh Alkali Resistance 8
Customizable 304 316 316L Plain Weave Stainless Steel Wire Mesh Alkali Resistance 9
Packing & Delivery
Customizable 304 316 316L Plain Weave Stainless Steel Wire Mesh Alkali Resistance 10
Customizable 304 316 316L Plain Weave Stainless Steel Wire Mesh Alkali Resistance 11
Company Profile
Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. It is a manufacturer integrating production, processing, distribution and wholesale. The main products include galvanized welded wire mesh,stainless steel welded wire mesh,PVC welded wire mesh,crimped wire mesh,galvanized woven wire mesh,stainless steel woven wire mesh,chain link fence,steel fence,welded wire mesh fence panels,PVC euro fence,358 anti-climb fence,razor wire and so on.
Since its beginning,we have been working at four points, they are High Quality,Quick Delivery,Better Price and Thorough Service,Rely on the product quality and our credit standing, we have got favourable comments from the customers.
The company introduces precise making machines and technics,combinning scientific inner managing method and quality control system.Since the year it was established ,we developed our powder and credit standing and got reliances of our customers in home and abroad.Our products is checking by very high standeard, and the qualified ones leaved the factory to the whole county an some aabroad countries,such as Southeast Asia,Middle East,Ameria,Japan,and some Africa countries.


Customizable 304 316 316L Plain Weave Stainless Steel Wire Mesh Alkali Resistance 12



Certifications

 Customizable 304 316 316L Plain Weave Stainless Steel Wire Mesh Alkali Resistance 13

FAQ
Q: How long is your delivery time?
Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q:Do you provide samples?
Yes, we can provide the product samples for your test.Its free and freight should be collected by your side.

Q:How can I know the completion of my order?
Deposit payment---start production---transfer infro to logistic---book shipment--inform customer ETD&ETA---load container---balance payment---send documents

Q:How can I know whether you are a reliable company?
We have been in this business line since 1987,with too much exporting experience. Above listed our certifications.
