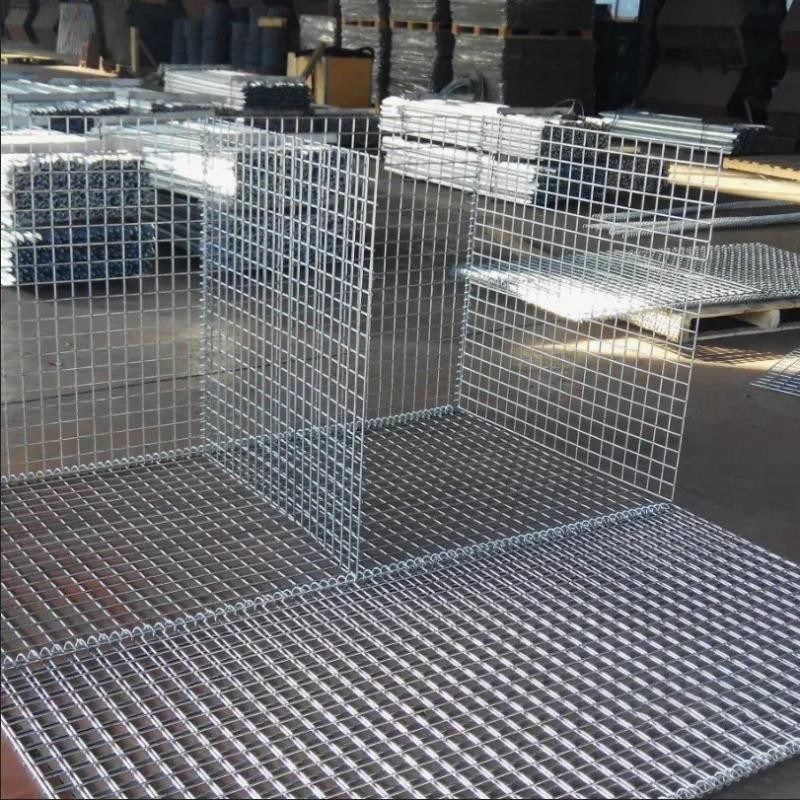

1x1x1m Hot Dipped Galvanized Gabion Box Stone Cage for Retaining Wall

Name: 1x1x1m Hot Dipped Galvanized Gabion Box Stone Cage for Retaining Wall
Brand: ANPING BINGZHE METAL PRODUCTS CO.，LTD
SKU: WGB20231009
Price: 10.00 USD
Availability: InStock

Product Details

Place of Origin: Anping,China

Brand Name: Bingze

Certification: ISO9001-2015

Model Number: WGB20231009

Payment & Shipping Terms

Minimum Order Quantity: 1 square meter

Price: 5-15 dollars

Packaging Details: 1) carton 2) pallet 3) as customer's requirement

Delivery Time: 10-15days

Payment Terms: T/T,L/C

Supply Ability: 500 Square Meter/Square Meters per Day gabion wire

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    hot dipped galvanized gabion box, welded gabion basket retaining wall, 1m stone cage gabion box


Gabion Size:	2mx1mx1m,etc	Wire Diameter:	3-6mm
Wire Material:	Hot Dip Galvanized, Galfan Coated	Mesh Opening:	5050,50100,100*100
Tensile Strength:	Min. 450 N/mm2	Frame Material:	Metal

Gabion Size:	2mx1mx1m,etc
Wire Diameter:	3-6mm
Wire Material:	Hot Dip Galvanized, Galfan Coated
Mesh Opening:	5050,50100,100*100
Tensile Strength:	Min. 450 N/mm2
Frame Material:	Metal

1x1x1m Hot Dipped Galvanized Gabion Box Stone Cage for Retaining Wall

1×1×1m Hot Dipped Galvanized Stone Cage Welded Gabion Box Retaining Wall Gabion Basket

Product Overview

Our factory chooses high-quality raw materials to ensure the safety and comfort of your supplies.

Low-carbon steel wire - Protected by hot galvanizing or cold galvanizing with normal galvanizing amount of 20-300g/m²
Galfan coated wire - Zinc 5% aluminum or zinc 10% aluminum with corrosion resistance more than three times that of traditional pure zinc plating, and tensile strength not less than 380Mpa
PVC/PE galvanized steel wire - PVC or PE protective layer wrapped on high-quality low-carbon steel wire for increased protection in high pollution environments with various color options
Stainless steel wire - Strong anti-corrosion performance

Can be assembled by springs, C-rings and reinforced by hooks.

Product Specifications

Gabion Model	Gabion Size (m)	Wire Diameter (mm)	Mesh Opening (mm)	Surface Treatment
BZ-01	2×1×1m	3.0-10.0mm	Square mesh: 50×50, 75×75, 100×100, 150×150 Rectangle mesh: 30×50, 30×80, 50×80, 50×100, 100×150, 100×200	Electro galvanized, Hot dip galvanized, Galfan coated (Zinc-5%Al Aluminum) (Zinc-10%Al Aluminum), PVC coated
BZ-02	2×1×0.5m	3.0-10.0mm	Same as above	Same as above
BZ-03	1.5×1×1m	3.0-10.0mm	Same as above	Same as above
BZ-04	1×1×1m	3.0-10.0mm	Same as above	Same as above
BZ-05	1×1×0.5m	3.0-10.0mm	Same as above	Same as above
BZ-06	1×0.5×0.5m	3.0-10.0mm	Same as above	Same as above
BZ-07	1×0.8×0.3m	3.0-10.0mm	Same as above	Same as above
BZ-08	1×0.5×0.3m	3.0-10.0mm	Same as above	Same as above
BZ-09	1×0.3×0.3m	3.0-10.0mm	Same as above	Same as above

Note: All sizes can be customized according to your request.

Our Gabion box is made from strengthened hot dipped galvanized or zinc-aluminium coated steel which delivers exceptional corrosion resistance.

Welding Procedure

Galvanized After Welding - Welding first and then galvanizing, resulting in a more flat and beautiful surface
Galvanized Before Welding - Galvanizing first before welding, with visible solder joints
Firm Welding Spots - Tightly welded steel wires form a stable grid panel that is not easily broken

Gabion Box Advantages

Technology Specifications:

Material: Low carbon steel wire
Wire diameter: 3.0-6.0mm
Surface: Passivation and plasticization of electro-galvanized, hot-dip galvanized, plastic coated, dip-coated or Galfan
Color: Silver, green, etc.

The wire used to manufacture double twisted gabion wire mesh is soft annealed, mild steel wire provided with heavy zinc coating as per EN 10244/ASTM A 641 to prevent corrosion. In case of use in aggressive environments, it is further extruded with 0.5mm thick PVC Coating.

Features:

Durable structure with greater strength
Better shape control
Utmost corrosion resistance
Easy to assemble
Aesthetically pleasing appearance

Welded Mesh Gabions are constructed using square electro welded weld mesh panels of high tensile steel. They are increasing in popularity due to their comparative ease and speed of installation. They are an economical environmental solution for structural retaining walls and coastal defences.

Product Applications

Protection Mesh: River bank protection gabion, gabion retaining wall, soil protection gabion, road isolation and protection gabion, slope protection gabion fence, gabion flood control retaining wall, etc.
Building Applications: Gabion fence and gate, gabion building external wall, garden gabion, landscape gabion, animal gabion fence, poultry gabion cage, etc.
Decoration: Flower bed gabion, gabion bench, lawn gabion, gabion sculpture, lampshades, gabion stools, gabion fire pits, etc.

Company Profile

Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. It is a manufacturer integrating production, processing, distribution and wholesale. The main products include galvanized welded wire mesh, stainless steel welded wire mesh, PVC welded wire mesh, crimped wire mesh, galvanized woven wire mesh, stainless steel woven wire mesh, chain link fence, steel fence, welded wire mesh fence panels, PVC euro fence, 358 anti-climb fence, razor wire, Hesco Barrier, Gabion Box and more.

Since its beginning, we have been working at four points: High Quality, Quick Delivery, Better Price and Thorough Service. Relying on product quality and our credit standing, we have received favorable comments from customers. The company introduces precise making machines and technics, combining scientific inner managing methods and quality control systems.

Since the year it was established, we developed our power and credit standing and gained the reliance of our customers both domestically and internationally. Our products are checked by very high standards, and the qualified ones leave the factory to the whole country and some abroad countries, including Southeast Asia, Middle East, America, Japan, and some African countries.

Certifications

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?
A1: We are manufacturer.

Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.

Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.

Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.

Q5: How's the package?
A5: Normally are Tray, but also we can pack it according to your requirements.

Q6: How's the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
