Product Details
Place of Origin: Anping,China
Brand Name: Bingze
Certification: ISO9001-2015
Model Number: SGS20230213543
Payment & Shipping Terms
Minimum Order Quantity: 100 rolls
Price: 12$-20$
Packaging Details: Paper box or plastic films with pallet.
Delivery Time: 12-15 days
Payment Terms: T/T,L/C,Western Union,MoneyGram
Supply Ability: 200000 rolls per week
Roll Length: |
5-50m |
Wire Gauge: |
BWG12 |
Surface Treatment: |
PVC Coated |
Mesh Size: |
1/4" X 1/4" To 6" X 8" |
Wire Diameter: |
BWG24-22 To BWG14-12 |
Roll Width: |
0.4-2 M |
Roll Length: |
5-50m |
Wire Gauge: |
BWG12 |
Surface Treatment: |
PVC Coated |
Mesh Size: |
1/4" X 1/4" To 6" X 8" |
Wire Diameter: |
BWG24-22 To BWG14-12 |
Roll Width: |
0.4-2 M |

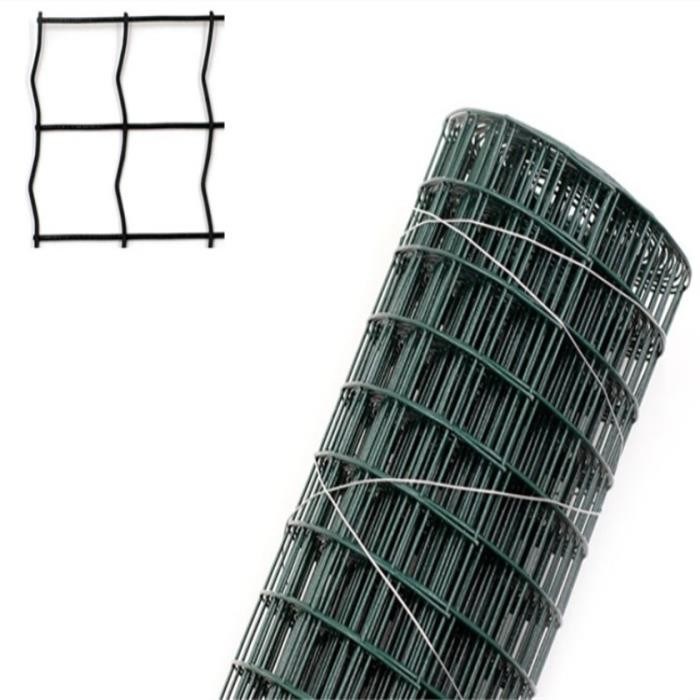

Strong welded points and bright luster. The PVC Welded Wire Mesh doesn't come loose even if cut into parts or when force is exerted on sections. Compared with general iron wire, PVC welded wire mesh offers superior anti-corrosive and anti-rust properties.
| Inch Size | Metric Size | Wire Diameter | Roll Size |
|---|---|---|---|
| 1/4" x 1/4" | 6.4 x 6.4mm | BWG24-22 | Width: 0.4-2 m Length: 5-50 m |
| 3/8" x 3/8" | 10.6 x 10.6mm | BWG22-19 | |
| 1/2" x 1/2" | 12.7 x 12.7mm | BWG23-16 | |
| 5/8" x 5/8" | 16 x 16mm | BWG21-18 | |
| 3/4" x 3/4" | 19.1 x 19.1mm | BWG21-16 | |
| 1" x 1/2" | 25.4 x 12.7mm | BWG21-16 | |
| 1-1/2" x 1-1/2" | 38 x 38mm | BWG19-14 | |
| 1" x 2" | 25.4 x 50.8mm | BWG16-14 | |
| 2" x 2" | 50.8 x 50.8mm | BWG15-12 | |
| 2" x 4" | 50.8 x 101.6mm | BWG15-12 | |
| 4" x 4" | 101.6 x 101.6mm | BWG15-12 | |
| 4" x 6" | 101.6 x 152.4mm | BWG15-12 | |
| 6" x 6" | 152.4 x 152.4mm | BWG15-12 | |
| 6" x 8" | 152.4 x 203.2mm | BWG14-12 |
PVC Welded wire mesh is available as coils/rolls or flat panels and sheets. It can be constructed from low carbon steel and stainless steel.
Surface treatments include electro galvanized, hot dipped galvanized, PVC coated, or powder coating.
Welded wire mesh is quick and simple to install and is not easily displaced by workers laying concrete. The ease of use can reduce completion time and help projects remain on budget.
Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. We are a manufacturer integrating production, processing, distribution and wholesale.
Our main products include galvanized welded wire mesh, stainless steel welded wire mesh, PVC welded wire mesh, crimped wire mesh, galvanized woven wire mesh, stainless steel woven wire mesh, chain link fence, steel fence, welded wire mesh fence panels, PVC euro fence, 358 anti-climb fence, and razor wire.
Since our beginning, we have been committed to four key principles: High Quality, Quick Delivery, Better Price and Thorough Service. Relying on product quality and our credit standing, we have earned favorable comments from customers worldwide.
Our company utilizes precise manufacturing machines and technics, combining scientific inner management methods and quality control systems. Since establishment, we have developed our reputation and credit standing, earning the trust of customers both domestically and internationally.
Our products undergo rigorous quality checks according to high standards, with qualified products shipped throughout the country and to numerous overseas markets including Southeast Asia, Middle East, America, Japan, and African countries.
