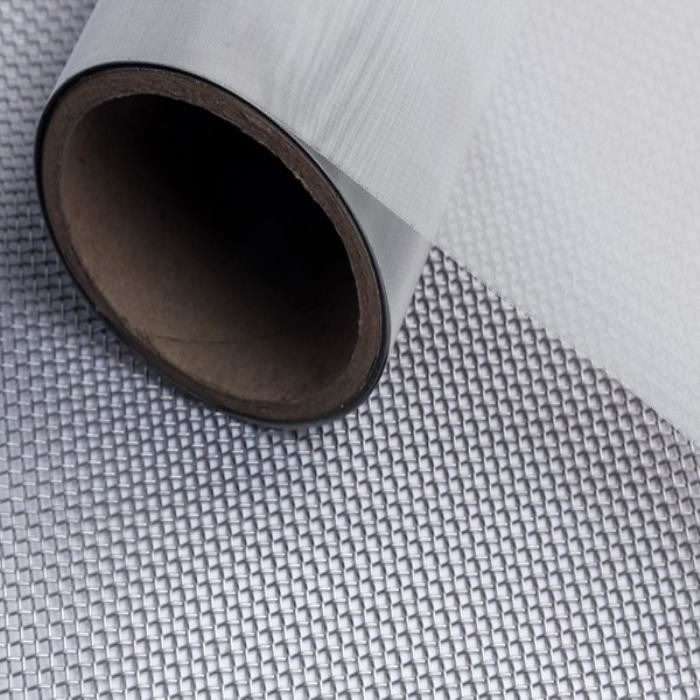

Customizable Stainless Steel Woven Wire Mesh with Square Hole and Acid Alkali Resistance

Name: Customizable Stainless Steel Woven Wire Mesh with Square Hole and Acid Alkali Resistance
Brand: Anping Bingze Wire Mesh Products Co.,Ltd
SKU: SS20230920
Price: 40.00 USD
Availability: InStock

Product Details

Place of Origin: AnPing,China

Brand Name: Bingze

Certification: ISO9001-2015

Model Number: SS20230920

Payment & Shipping Terms

Minimum Order Quantity: 1roll

Price: 30dollars-50dollars

Packaging Details: 1.There are waterproof paper and carton pipe inside for support. 2.Then use wooden case / wooden pallets outside. 3.It also can be packaged according to your request.

Delivery Time: 12-15days

Payment Terms: T/T,L/C

Supply Ability: 8000rolls per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    stainless steel woven wire mesh sheets, customizable wire mesh specifications, mental wire mesh with warranty


Material:	SUS201, 304, 304L, 316, 316L, 431, 321, 410/430, 310S, 904L, UNS S31803(S32205), UNS S32750	Wire Diameter:	0.015-2.8mm
Mesh Counts:	Plain/Twill Weave: 2-635 Mesh, Dutch Weave:1264-5003200 Mesh	Weave Type:	Plain Weave, Plain Dutch Weave, Twill Weave, Dutch Twilled Weave, Reversed Dutch Weave
Width:	40 Mm ---210 Mm	Length:	30m/roll

Material:	SUS201, 304, 304L, 316, 316L, 431, 321, 410/430, 310S, 904L, UNS S31803(S32205), UNS S32750
Wire Diameter:	0.015-2.8mm
Mesh Counts:	Plain/Twill Weave: 2-635 Mesh, Dutch Weave:1264-5003200 Mesh
Weave Type:	Plain Weave, Plain Dutch Weave, Twill Weave, Dutch Twilled Weave, Reversed Dutch Weave
Width:	40 Mm ---210 Mm
Length:	30m/roll

Customizable Stainless Steel Woven Wire Mesh with Square Hole and Acid Alkali Resistance

Woven Stainless Steel Wire Mesh

Product Description

Material:

Common material: SUS201, 304, 304L, 316, 316L, 431, 321 stainless steel wire
Special material: 410/430, 310S, 904L stainless steel wire
UNS S31803(S32205) duplex stainless steel wire
UNS S32750 Super duplex stainless steel wire

Wire Diameter: 0.015-2.8mm

Mesh counts: Plain/Twill weave: 2-635 mesh | Dutch weave: 12×64-500×3200 mesh

Product Application

Stainless steel woven wire mesh is widely used in daily use, petroleum, chemical, food, pharmaceutical, and classification, screening and filtering of solid, liquid and gas in the fields of mining, metallurgy, aerospace, and mechanical manufacturing.

Sieving and filtering in acid and alkali environment conditions
Petroleum industry as mud mesh
Chemical fiber industry as screen mesh
Plating industry as acid cleaning mesh

Product Specifications

Product Name	Reverse Ultra Fine Plain Weave Stainless Steel Wire Mesh
Wire Material	SU302, 304, 316, 304L, 316L, 310S, 321 etc
Technique	Plain Woven
Weave Type	Plain weave, Plain dutch weave, Twill weave, Dutch twilled weave, Reversed Dutch Weave etc
Mesh Count	1 mesh - 650 mesh
Wire Diameter	0.025 mm - 3 mm or custom
Width	40 mm - 210 mm
Packing	Water-Proof, Plastic Paper, Wooden Case, Pallet
Length	30m/roll
Performance	Acid resistance, alkali resistance, temperature resistance, wear resistance and other properties

Stainless steel woven wire mesh is made by stainless steel wire woven together to form square or oblong openings. Due to its inherent characteristics, the mesh features high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti-static, and corrosion resistance to acids and alkalis.

Weave Types

Plain Weave: The most commonly used weaving type. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.

Twill Weave: The wires of the weft and the warp inter cross two above and two below, inverting the intersections of the warp wire at an established distance and obtaining a rigid, stable and robust type of wire mesh fabric.

Dutch Weave: The wires of the weft and the warp inter cross two above with a larger weft wire than the warp. This type of wire mesh allows a greater difference between the diameter and the number of weft and warp wire.

Product Details

Packing & Delivery

Company Profile

Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. We are a manufacturer integrating production, processing, distribution and wholesale. Our main products include galvanized welded wire mesh, stainless steel welded wire mesh, PVC welded wire mesh, crimped wire mesh, galvanized woven wire mesh, stainless steel woven wire mesh, chain link fence, steel fence, welded wire mesh fence panels, PVC euro fence, 358 anti-climb fence, razor wire and more.

Since our beginning, we have been committed to four key principles: High Quality, Quick Delivery, Better Price and Thorough Service. Relying on product quality and our credit standing, we have earned favorable comments from customers worldwide.

Our company utilizes precise manufacturing machines and techniques, combining scientific management methods with quality control systems. Since establishment, we have developed our reputation and earned the trust of customers both domestically and internationally. Our products are manufactured to high standards and are exported throughout the country and to various international markets including Southeast Asia, Middle East, America, Japan, and African countries.

Frequently Asked Questions

Q: Are you trader or manufacturer?

A: We are a professional wire mesh manufacturer.

Q: Can I get the free sample?

A: Yes, we can provide you free sample for testing.

Q: What is your payment term?

A: TT, LC, DP, Western Union, Paypal, etc. Note: you can apply for OA payment.

Q: Can I customize the products?

A: Yes, as long as provide specification or drawing, we can produce products what you want.

Q: How long is the delivery time?

A: More than 500 kinds of stock products, the fastest delivery is 24 hours. Customized products, the fastest delivery is 15-20 days.

For more questions, please contact our sales team.
