High Precision Dutch Weave 304/316L Stainless Steel Woven Wire Mesh for Ultra-Fine Liquid Filtration

Name: High Precision Dutch Weave 304/316L Stainless Steel Woven Wire Mesh for Ultra-Fine Liquid Filtration
Brand: Anping Bingze Wire Mesh Products Co.,Ltd
SKU: SGS202309255555
Price: 21.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Bingze

Certification: ISO9001-2015

Model Number: SGS202309255555

Payment & Shipping Terms

Minimum Order Quantity: 100 rolls

Price: 18$-25$

Packaging Details: 1.Plastic wrapping,wooden pallet 2.Customized according to customer requirements

Delivery Time: 10-15 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 10000 rolls per month

Get Best Price

Product Details

Product Description

Highlight:

Product Name:	Stainless Steel Woven Wire Mesh	Technique:	Woven
Length:	Usually It Is 30 -30.5 Meter Per Roll	Application:	Filtering, Screen ,Seperating,sifting,protection
Hole Shape:	Square Or Diamond Or Round	Feature:	Corrosion Resistant,heat Resistant,uniform Aperture
Width:	10 Cm To 800 Cm	Weave Style:	Plain Dutch Twill Mesh Steel Stainless Steel Mesh Roll
Material Type:	304 316 316L Stainless Steel Metal Mesh Fine Mesh Micro Mesh

Product Name:	Stainless Steel Woven Wire Mesh
Technique:	Woven
Length:	Usually It Is 30 -30.5 Meter Per Roll
Application:	Filtering, Screen ,Seperating,sifting,protection
Hole Shape:	Square Or Diamond Or Round
Feature:	Corrosion Resistant,heat Resistant,uniform Aperture
Width:	10 Cm To 800 Cm
Weave Style:	Plain Dutch Twill Mesh Steel Stainless Steel Mesh Roll
Material Type:	304 316 316L Stainless Steel Metal Mesh Fine Mesh Micro Mesh

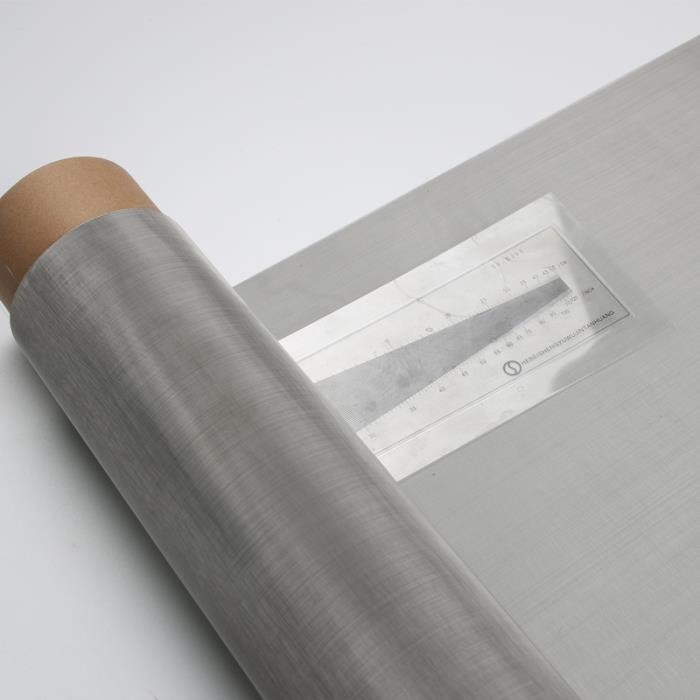

High Precision Dutch Weave 304/316L Stainless Steel Woven Wire Mesh for Ultra-Fine Liquid Filtration

High Precision Dutch Weave 304/316L Stainless Steel Micronic Filter Cloth

Designed for ultra-fine liquid filtration and gas purification systems, our stainless steel woven mesh delivers exceptional performance in demanding industrial applications.

Product Overview

Our stainless steel woven mesh is professionally manufactured using advanced automatic weaving looms. Available in material grades including 304, 304L, 316, and 316L, with weaving methods of plain weave, twill weave, and Dutch twill weave to meet various filtration precision requirements.

Featuring uniform mesh holes, flat surfaces, high tensile strength, outstanding corrosion resistance, high temperature tolerance, and wear resistance, this metal wire mesh offers stable dimensional stability and long service life. It is non-toxic, easy to clean, reusable, and meets food-grade hygiene standards.

Product Features

Premium Material: Made of 304/316/316L stainless steel wire with excellent acid & alkali resistance, anti-rust and anti-corrosion properties
Precise Weaving Craft: Multiple weave types available with uniform mesh aperture and stable structure
High Mechanical Performance: Great tensile strength, wear resistance and high temperature resistance
Food Grade Hygienic Property: Non-toxic, odorless, easy to clean and sterilize
Wide Customization Support: Customizable mesh count, wire diameter, width, length and processing
Stable Filtration Effect: Accurate particle interception and reliable sieving performance

Applications

Filtration & Separation Industry - Liquid filtration, solid-liquid separation, powder grading, oil filters, wastewater treatment
Food & Beverage Industry - Sieving flour, sugar, starch; beverage impurity filtering
Pharmaceutical & Medical Industry - Raw medicine powder screening, liquid filtration, sterilization trays
High Temperature & Heat Treatment - Furnace isolation mesh, conveyor belts, quenching baskets
Construction & Decoration - Architectural curtain walls, facade cladding, safety guards
Safety Protection & Mechanical Guarding - Equipment protective covers, anti-splash baffles
Daily & Agricultural Use - Insect screens, breeding cage nets, aquaculture mesh
Electronics & Electromagnetic Shielding - EMI shielding for electronic cabinets
Other General Uses - Reinforcement mesh, battery electrode nets, sand control screens

Industrial mining vibrating screen application

Product Specifications

Product Name	Woven Wire Mesh, Wire Cloth
Stainless Steel Grade	304, 304L, 316, 316L, 310s, 904L, 430, etc
Special Material Options	Inconel, Monel, Nickel, Titanium, etc
Wire Diameter Range	0.02 - 6.30mm
Hole Size Range	1 - 3500mesh
Weave Types	Plain Weave, Twill Weave, Dutch or 'Hollander' Weave, Plain Dutch Weave, Twill Dutch Weave, Reverse Dutch Weave, Multiplex Weave
Mesh Width	Standard less than 2000 mm
Mesh Length	30m rolls or cut to length, minimum 2m
Mesh Type	Rolls and sheets are available
Production Standards	ASTM E2016 - 20
Certification	ISO9001: 2015

Product Construction Types

Plain weave stainless steel wire mesh

Twill weave stainless steel wire mesh

Dutch weave stainless steel wire mesh

Technical specifications diagram

Close-up view of precise weaving

Industrial filtration system application

Packing & Delivery

Secure packaging on wooden pallets

Prepared for international delivery

Frequently Asked Questions

Are you factory/manufacturer or trader? We are a direct factory with our own production lines and workers.
Which countries do you export to? Australia, Canada, UK, USA, Germany, Thailand, South Korea and other countries.
Can I get free samples? If available, samples are free. Customization may require charges.
What is your minimum order quantity? No MOQ - we recommend quantities based on competitive pricing.
Which payment method can you accept? T/T, LC, Western Union, PayPal, Escrow and Money Gram.
Can you do customized Logo or Packing? Yes, customized logos and packaging are welcomed.
How long is the delivery time? Stock products: 24 hours. Customized products: 15-20 days.
