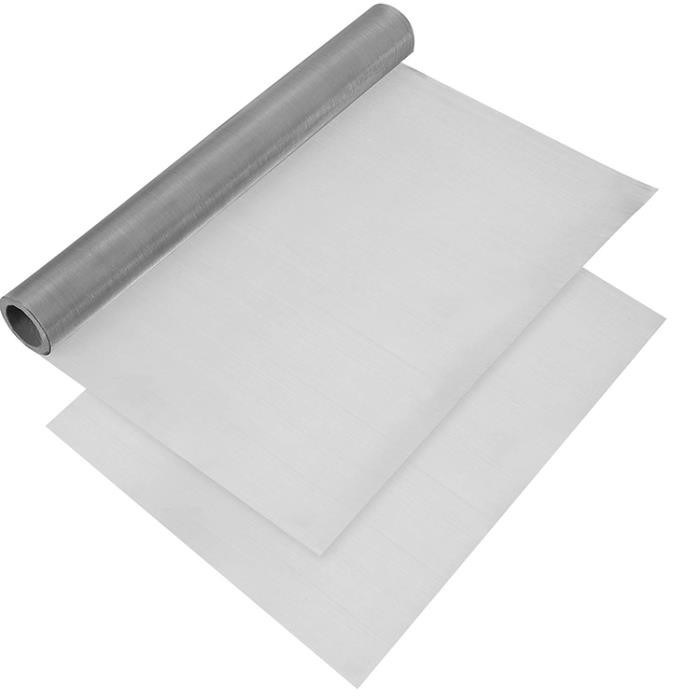

304/316L Stainless Steel Wire Mesh with 80 Micron Fine Filter and 1.5mm/3mm Aperture for Industrial Sieve

Name: 304/316L Stainless Steel Wire Mesh with 80 Micron Fine Filter and 1.5mm/3mm Aperture for Industrial Sieve
Brand: Anping Bingze Wire Mesh Products Co.,Ltd
SKU: SGS202309255555
Price: 21.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Bingze

Certification: ISO9001-2015

Model Number: SGS202309255555

Payment & Shipping Terms

Minimum Order Quantity: 100 rolls

Price: 18$-25$

Packaging Details: 1.Plastic wrapping,wooden pallet 2.Customized according to customer requirements

Delivery Time: 10-15 days

Payment Terms: L/C,Western Union,T/T

Supply Ability: 10000 rolls per month

Get Best Price

Product Details

Product Description

Highlight:

Product Name:	Stainless Steel Woven Wire Mesh	Weave Style:	PLAIN WEAVE
Technique:	Woven	Width:	0.5m-2m
Style:	Morden	Application:	Filters
Processing Service:	Cutting	Material:	304/316/316L Stainless Steel Wire
Packing:	Water-Proof Paper+ Wooden Case	Length:	1-30m
Sample:	Avaliable

Product Name:	Stainless Steel Woven Wire Mesh
Weave Style:	PLAIN WEAVE
Technique:	Woven
Width:	0.5m-2m
Style:	Morden
Application:	Filters
Processing Service:	Cutting
Material:	304/316/316L Stainless Steel Wire
Packing:	Water-Proof Paper+ Wooden Case
Length:	1-30m
Sample:	Avaliable

304/316L Stainless Steel Wire Mesh with 80 Micron Fine Filter and 1.5mm/3mm Aperture for Industrial Sieve

304 316L Stainless Steel Wire Mesh

Metal Woven Roll & Sheet Panel, 80 Micron Fine Filter Cloth, 1.5mm/3mm Aperture Hole Size Industrial Sieve Filter Screen

Product Overview

Stainless steel wire mesh is manufactured from stainless steel wire woven together to form square or oblong openings. Due to the inherent characteristics of stainless steel, the resulting mesh offers high wear resistance, extended service life, precise mesh patterns, uniform structure, flatness without curling, ease of use, consistent screen thickness, anti-static properties, and resistance to acid and alkali corrosion.

The product features excellent acid and alkali resistance, temperature tolerance, and wear resistance, making stainless steel mesh widely applicable across numerous industrial sectors.

Product Features

Premium Stainless Steel Construction: Woven from high-grade 304 or 316 stainless steel wire, offering exceptional corrosion resistance, durability, and longevity in demanding environments including marine, chemical, and food processing applications.
Precision Wire Diameter Options: Available in various wire diameters from 0.025mm to 12mm with mesh counts ranging from 2 to 635, allowing precise selection for specific filtration, separation, or screening requirements.
Consistent Aperture Size: Precision weaving technology ensures uniform opening sizes throughout the mesh roll, providing reliable and predictable particle retention for critical filtration applications.
High Tensile Strength: The woven structure delivers excellent mechanical strength and impact resistance, maintaining structural integrity under high-pressure conditions and heavy-duty industrial use.
Excellent Heat Resistance: Capable of withstanding continuous operating temperatures up to 800°C for 304 stainless steel and 1000°C for 310S grades, suitable for high-temperature filtration and screening processes.
Versatile Industrial Applications: Widely used in petroleum filtration, chemical processing, food and beverage production, pharmaceutical manufacturing, mining screening, and architectural decorative mesh applications.
Easy to Clean and Maintain: Non-absorbent surface resists contamination and can be easily cleaned through backwashing, ultrasonic cleaning, or chemical washing, ensuring long service life and reduced replacement costs.
Customizable Weave Patterns: Available in plain weave, twill weave, and Dutch weave configurations to achieve different flow rates, filtration precision, and mechanical properties for specialized applications.
Cut-to-Size Availability: Supplied in rolls or custom-cut sheets and discs to meet specific equipment dimensions, reducing waste and simplifying installation for OEM and aftermarket applications.

Applications

Filtration & Separation Industry - Liquid filtration, solid-liquid separation, powder grading, oil filters, wastewater treatment
Food & Beverage Industry - Sieving flour, sugar, starch; beverage impurity filtering, food grade filtering screens
Pharmaceutical & Medical Industry - Raw medicine powder screening, liquid filtration, high-temperature sterilization trays
High Temperature & Heat Treatment Field - Furnace isolation mesh, high-temperature conveyor belts, heat treatment quenching baskets
Construction & Decoration - Architectural decorative curtain walls, facade cladding, stair anti-fall guards
Safety Protection & Mechanical Guarding - Machine equipment protective covers, anti-splash baffles, workshop isolation fences
Daily & Agricultural Use - Window and door insect screens, breeding cage nets, aquaculture isolation mesh
Electronics & Electromagnetic Shielding - EMI shielding mesh for electronic cabinets, signal shielding nets
Other General Uses - Rubber & plastic reinforcement mesh, battery electrode nets, oil well sand control screens

Industrial mining vibrating screen application

Product Specifications

Mesh (inch)	Wire Diameter (inch)	Aperture (inch)	Mesh (inch)	Wire Diameter (inch)	Aperture (inch)
2	0.063	0.437	80	0.006	0.007
5	0.041	0.159	100	0.004	0.007
10	0.025	0.075	120	0.037	0.006
14	0.020	0.051	150	0.003	0.004
18	0.017	0.039	180	0.002	0.003
20	0.016	0.034	200	0.002	0.003
24	0.014	0.028	300	0.005	0.002
30	0.009	0.024	500	0.001	0.001
40	0.010	0.015	635	0.001	0.001
60	0.007	0.010	Accept Custom

Product Construction Types

Plain weave stainless steel wire mesh

Twill weave stainless steel wire mesh

Dutch weave stainless steel wire mesh

Technical specifications diagram

Close-up view of precise weaving

Industrial filtration system application

Packing & Delivery

Secure packaging on wooden pallets

Prepared for international delivery

Frequently Asked Questions

Are you factory/manufacturer or trader?
We are a direct factory with our own production lines and workers. Everything is flexible with no extra charges from middlemen or traders.
Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand, South Korea and other countries.
Can I get free samples?
If the sample is available, yes, it can be free. If unavailable, customization is required.
What is your minimum order quantity?
There is no MOQ for our products. We typically recommend quantities based on pricing that is easy to accept.
Which payment method can you accept?
We generally accept T/T, LC, Western Union, PayPal, Escrow and Money Gram.
Can you do customized Logo or Packing?
Yes, customized Logo or Packing is welcomed. Most of our products include customer-requested logos.
How long is the delivery time?
For over 500 stock products, the fastest delivery is 24 hours. For customized products, the fastest delivery is 15-20 days.
