Galvanized + Powder Coated 3D Curved Fence with 50x100mm Mesh Size and Modular Structure for Secure Outdoor Enclosure

Name: Galvanized + Powder Coated 3D Curved Fence with 50x100mm Mesh Size and Modular Structure for Secure Outdoor Enclosure
Brand: Anping Bingze Wire Mesh Products Co.,Ltd
SKU: SGS202309255555
Price: 21.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Bingze

Certification: ISO9001-2015

Model Number: SGS202309255555

Payment & Shipping Terms

Minimum Order Quantity: 100 PCS

Price: 18$-25$

Packaging Details: 1.Plastic wrapping,wooden pallet 2.Customized according to customer requirements

Delivery Time: 10-15 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 10000 rolls per month

Get Best Price

Product Details

Product Description

Highlight:

Product Name:	3D Curved Fence	Application:	Home Security, Park, Security Fence, Protecting
Feature:	Eco-Friendly, Eco Friendly, Waterproof	Style:	Modern
Frame Finishing:	Galvanized +powder Coated	Packaging:	Wooden Carton
Dimensions:	1.8*2.4m	Hole Size:	50mmx100mm,50mmx200mm,50mmx75mm
Panel Size:	1.8mx3m,three Or Four Bends	Wire Diameter:	3.5mm-5.0mm
Post Size:	60mmx60mm,50mmx50mm	Height:	1.8m-2.5m

Product Name:	3D Curved Fence
Application:	Home Security, Park, Security Fence, Protecting
Feature:	Eco-Friendly, Eco Friendly, Waterproof
Style:	Modern
Frame Finishing:	Galvanized +powder Coated
Packaging:	Wooden Carton
Dimensions:	1.8*2.4m
Hole Size:	50mmx100mm,50mmx200mm,50mmx75mm
Panel Size:	1.8mx3m,three Or Four Bends
Wire Diameter:	3.5mm-5.0mm
Post Size:	60mmx60mm,50mmx50mm
Height:	1.8m-2.5m

Galvanized + Powder Coated 3D Curved Fence with 50x100mm Mesh Size and Modular Structure for Secure Outdoor Enclosure

Cost-Effective Anti-Aging Outdoor 3D Bending Isolation Fence 1.03m×2.0m

Small aperture wire mesh barrier designed for community greening, flower beds, lawn landscape enclosure, and perimeter security applications.

Product Overview

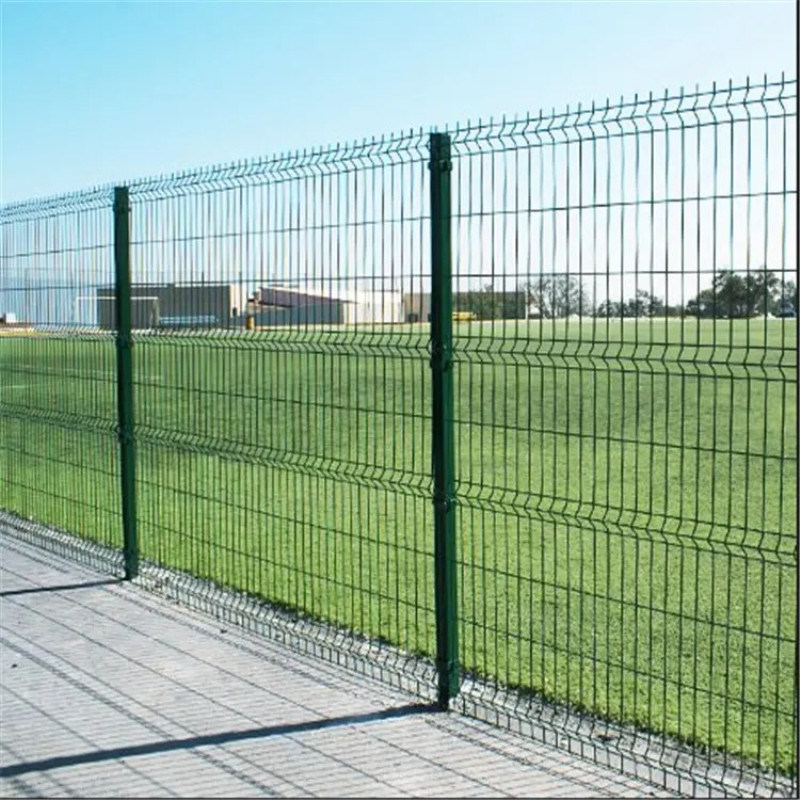

3D Curved Fence (also known as 3D V-bend wire mesh fence or curved welded mesh panel fence) is a modular perimeter security and decorative fencing system constructed from high-strength welded steel wire panels. Each mesh sheet features continuous vertical V-shaped three-dimensional curves that create a self-reinforced triangular mechanical structure without requiring extra steel reinforcement.

Product Specifications

Common Specifications of Fence Panel

Mesh Size	Wire Diameter	Coating	Height	Width	Folds
50x100mm, 50x200mm, 60x200mm, 75x100mm, 75x200mm	3.0mm-6.0mm (Most Usual: 3.0mm-5.0mm)	Hot-dipped galvanized / Electro Galvanized + Powder Coated	1.03m	2.00m	2
			1.23m	2.00m	2
			1.53m	2.00m	2
			1.73m	2.50m	2/3
			1.83m	2.50m	3
			2.03m	2.50m	4
			2.13m	2.50m	4
			2.23m	2.50m	4

Common Specification of Fence Post

Post Style	Post Size
Square Post	4060mm / 6060mm 1.2mm / 1.5mm / 2.0mm
Peach Post	5070mm / 70100mm 1.0mm / 1.2mm
Rectangle Post	4060mm / 6080mm 1.2mm / 1.5mm / 2.0mm

Production Process

3D Curved Fence Components:

Panel wire: Q195 & Q235 Low carbon wire
Post: Hot dipped galvanized tube, no coated tube
Bolts: M8 anti-vandal steel or stainless steel
Surface treatment: Hot dipped galvanized, PVC coated, Powder coated
Color: Green, black, yellow, white, blue, etc.

Processing of 3D Welded Fence:

Material → Straightening & cut wire → Welding → Galvanizing → Powder coating → Packaging

Product Accessories

Product Features

Unique 3D V-curved reinforcement - Anti-climb design with high impact & wind resistance

Durable coating - Hot dip galvanized + powder coated, anti-rust, UV-proof, 15+ years service life

Fully welded construction - Solid solder joints, stable and not easy to deform

Modular design - Quick installation, adaptable to slopes and curved roads

Aesthetic appeal - Elegant transparent outlook, multiple RAL colors, full sizes & OEM support

Packing & Delivery

3D Curved Fence Packing Details:

Bubble plastic at the bottom of the pallet to avoid damage to panels
4 metal corners to reinforce pallet strength
Metal plate under each plastic bandage line to reduce pressure on fence panels
Steel plates on top of fence panels to protect against crushing from other pallets

3D curved fence packing:

Put in carton box
Then put in container

About Us

Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. We are a manufacturer integrating production, processing, distribution and wholesale.

Main products include: Galvanized welded wire mesh, stainless steel welded wire mesh, PVC welded wire mesh, crimped wire mesh, galvanized woven wire mesh, stainless steel woven wire mesh, chain link fence, steel fence, welded wire mesh fence panels, PVC euro fence, 358 anti-climb fence, razor wire, 3D Curved fence and more.

Since our beginning, we have been committed to: High Quality, Quick Delivery, Better Price and Thorough Service. Relying on product quality and our credit standing, we have received favorable comments from customers worldwide.

The company introduces precise making machines and technics, combining scientific inner managing method and quality control system. Our products are exported to Southeast Asia, Middle East, America, Japan, and African countries.
