Home > products > Stainless Steel Woven Wire Mesh > High Temperature Resistant Stainless Steel Filter Wire Mesh Fine Woven Wire Mesh 1-30m

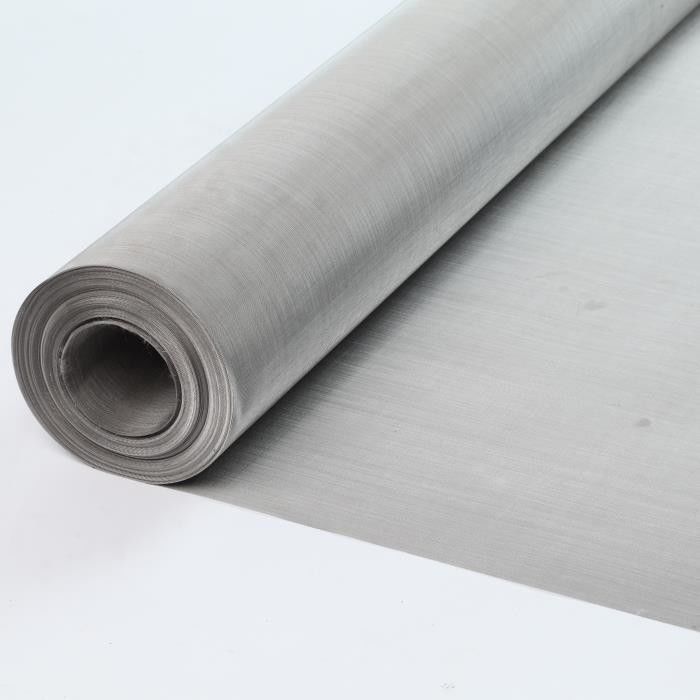

High Temperature Resistant Stainless Steel Filter Wire Mesh Fine Woven Wire Mesh 1-30m

Product Details

Place of Origin: AnPing,China

Brand Name: Bingze

Certification: ISO9001-2015

Model Number: SS20230920

Payment & Shipping Terms

Minimum Order Quantity: 1roll

Price: 30dollars-50dollars

Packaging Details: 1.There are waterproof paper and carton pipe inside for support. 2.Then use wooden case / wooden pallets outside. 3.It also can be packaged according to your request.

Delivery Time: 12-15days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 8000rolls per month

Get Best Price
Highlight:

High Temperature Resistant filter wire mesh

,

fine woven wire mesh 30m

,

Stainless Steel Filter Wire Mesh 30m

Material:
304 Stainless Steel
Wire Diameter:
0.0008-0.08 Inch
Aperture:
20-11348um
Application:
Screen
Length:
1-30m
Width:
0.5-2m
Material:
304 Stainless Steel
Wire Diameter:
0.0008-0.08 Inch
Aperture:
20-11348um
Application:
Screen
Length:
1-30m
Width:
0.5-2m
High Temperature Resistant Stainless Steel Filter Wire Mesh Fine Woven Wire Mesh 1-30m

High Temperature Resistant 304 Stainless Steel Woven Wire Mesh For Filter

Products Description

Stainless Steel Woven Wire Mesh can be divided into stainless steel plain-woven wire mesh, stainless steel twill woven wire mesh, stainless steel three Heddie wire mesh, stainless steel three Heddie wire mesh.

Stainless steel woven wire mesh products Net surface: clean, smooth, small magnetic

Wire Material: 201,302,304,316,304L,316L,321

Packing: Water-Proof, Plastic Paper, Wooden Case, Pallet

Stainless Steel Wire Mesh Product Features:

Heat, acid, corrosion resistance, wear resistance. Surface smooth, clean, non-toxic, health, environmental protection.

Stainless steel wire mesh products uses:

Chemicals: acid solution filtration, chemical experiments, chemical particulate filter, gas filter corrosive, caustic dust filtration

Oil: oil purification, oil mud filtration, separation of impurities, etc.

Medicine: Chinese medicine decoction filtration, the solid particulate filtration, purification, and other drugs

Electronics: Circuit board framework, electronic components, battery acid, radiation module

Printing: Ink filtration, carbon filtration, purification, and other toners

Equipment: vibrating screen

Product Features
Wire mesh offers many benefits including:
-Widest range filtration, from over 6-inch aperture down to 1-micron nominal.
-High open area/flow rate.
-Closely controlled, accurate apertures.
-Smooth surface - screening surface has no sharp edges, burrs or acute angles.
-Very high-temperature tolerance (variable according to metal selected).
-Usable under high pressure.
-Flexible - ideal for forming rigid concave / convex shapes.
-Control of chemical/acid/ corrosion resistance using different metals.
-Special aperture requirements can be met without high tooling costs.
-High durability.
-Self-supporting.
-Suitable as upper for less rigid media.
-Stable under tension.
-The weaving process uses no punching, piercing or stretching operations that create stress-induced weaknesses.
-Point contact only on the screened product allows freer screening and reduced binding.
-Corrosion, abrasion and heat resistance.
-Highly aesthetic appeal for architectural applications.
-Hygienic characteristics and cleanability are specifically suitable for the food and pharmaceutical industries.
-Cost-effective.
Product Specifications
Product name
Reverse Ultra Fine Plain Weave Stainless Steel Wire Mesh
Wire Material
SU302, 304, 316, 304L, 316L, 310S, 321 etc
Technique
Plain Woven
Weave type
Plain weave, Plain dutch weave, Twill weave, Dutch twilled weave, Reversed Dutch Weave etc
Mesh Count
1mesh ---650 mesh
Wire Diameter
0.025 mm---3 mm or custom
Width
40 mm ---210 mm
Packing
Water-Proof ,Plastic Paper, Wooden Case ,Pallet
Length
30m/roll
Performance
Acid resistance, alkali resistance, temperature resistance, wear resistance and other properties

Stainless steel Woven wire mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening.

Due to its own characteristics of stainless steel, the stainless steel woven wire mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance Corrosion. The product has the characteristics of acid and alkali resistance, temperature resistance, wear resistance and other properties, therefore, in recent years, stainless steel net is widely used in many different fields.
High Temperature Resistant Stainless Steel Filter Wire Mesh Fine Woven Wire Mesh 1-30m 0
This is the most commonly used weaving type. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
High Temperature Resistant Stainless Steel Filter Wire Mesh Fine Woven Wire Mesh 1-30m 1
The wires of the weft and the warp inter cross two above and two below, inverting the intersections of the warp wire at an established distance and obtaining a rigid, stable and robust type of wire mesh fabric
High Temperature Resistant Stainless Steel Filter Wire Mesh Fine Woven Wire Mesh 1-30m 2
The wires of the weft and the warp inter cross two above with a larger weft wire than the warp. Such kind of wire mesh allows a greater difference between the diameter and the number of weft and warp wire.
Product Details
High Temperature Resistant Stainless Steel Filter Wire Mesh Fine Woven Wire Mesh 1-30m 3
High Temperature Resistant Stainless Steel Filter Wire Mesh Fine Woven Wire Mesh 1-30m 4
High Temperature Resistant Stainless Steel Filter Wire Mesh Fine Woven Wire Mesh 1-30m 5
Packing & Delivery
High Temperature Resistant Stainless Steel Filter Wire Mesh Fine Woven Wire Mesh 1-30m 6
Company Profile
Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. It is a manufacturer integrating production, processing, distribution and wholesale. The main products include galvanized welded wire mesh,stainless steel welded wire mesh,PVC welded wire mesh,crimped wire mesh,galvanized woven wire mesh,stainless steel woven wire mesh,chain link fence,steel fence,welded wire mesh fence panels,PVC euro fence,358 anti-climb fence,razor wire and so on.
Since its beginning,we have been working at four points, they are High Quality,Quick Delivery,Better Price and Thorough Service,Rely on the product quality and our credit standing, we have got favourable comments from the customers.
The company introduces precise making machines and technics,combinning scientific inner managing method and quality control system.Since the year it was established ,we developed our powder and credit standing and got reliances of our customers in home and abroad.Our products is checking by very high standeard, and the qualified ones leaved the factory to the whole county an some aabroad countries,such as Southeast Asia,Middle East,Ameria,Japan,and some Africa countries.
Certifications

 High Temperature Resistant Stainless Steel Filter Wire Mesh Fine Woven Wire Mesh 1-30m 7

FAQ

1. Are you factory/manufacturer or trader?

We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.

2. Which countries do you export to?

Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.

3. Can I get free samples?

If the sample is available, yes, can be free. If unavailable, need to customize.

4. What is your minimum order quantity?

Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.

5. Which payment method you can accept?

Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.

6.Can you do customized Logo or Packing?

Yes,customized Logo or Packing is welcomed all the time. Most of our products, customer required to do with their Logo.

7.How long can the goods be delivered if order is placed?

If needs to produce,around 20 working days.If avaliable for stock,within 3 working days.
