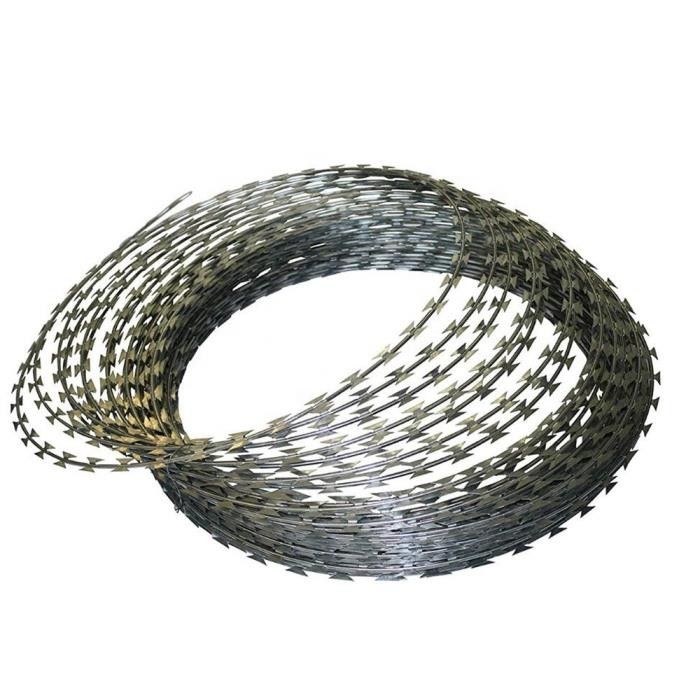

BTO-22 450mm Coil Diameter Galvanised Barbed Razor Wire Concertina Razor Wire for Security Fencing

Product Details

Place of Origin: Anping,China

Brand Name: Bingzhe

Certification: ISO9001-2015

Model Number: GRW20230921

Payment & Shipping Terms

Minimum Order Quantity: 50Roll

Price: 10-50 dollars

Packaging Details: Packing each bundle with anti-rust paper and light oil then wrapped in plastic film or hessians cloth with metallic pallet and put in 20ft or standard sea worthy. ral 3002 ppgi coil, ppgi coil galvanize steel, galvanized steel color coated ppgi coils

Delivery Time: 10-15days

Payment Terms: T/T,L/C

Supply Ability: 15000rolls per month

Get Best Price
Highlight:

450mm Barbed Razor Wire

,

450mm concertina wire mesh

,

Razor Wire Coil 960MM

Wire Diameter:
2.5mm
Blade Thickness:
0.5mm
Tensile Strength:
1400-1600 MPa
Zinc Coating:
90-275 Gsm
Coil Diameter:
100mm-960mm
Loops Per Coil:
30-80
Wire Diameter:
2.5mm
Blade Thickness:
0.5mm
Tensile Strength:
1400-1600 MPa
Zinc Coating:
90-275 Gsm
Coil Diameter:
100mm-960mm
Loops Per Coil:
30-80
BTO-22 450mm Coil Diameter Galvanised Barbed Razor Wire Concertina Razor Wire for Security Fencing
Product Overview

Barbed Razor Wire, also known as concertina razor wire, razor fencing wire, razor blade wire, or dannert wire, is a modern security fencing material offering superior protection and fencing strength. It is manufactured from hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and a strong core wire, razor wire provides secure fencing, easy installation, age resistance, and other reliable properties.

Material & Specifications

Material: Stainless steel (304, 304L, 316, 316L, 430), carbon steel.

Surface Treatment: Galvanized, PVC coated (green, orange, blue, yellow, etc.), E-coating (electrophoretic coating), powder coating.

Dimensions
  • Razor wire cross-section profile available
  • Standard wire diameter: 2.5 mm (± 0.10 mm)
  • Standard blade thickness: 0.5 mm (± 0.10 mm)
  • Tensile strength: 1400–1600 MPa
  • Zinc coating: 90 gsm – 275 gsm
  • Coil diameter range: 300 mm – 1500 mm
  • Loops per coil: 30–80
  • Stretch length range: 4 m – 15 m
Product Specification
Specifications of Barbed Razor Wire
Coil Diameter No. of Loops Length per Coil Razor Wire Types Notes
450 mm337–8 mCBT-60.65Single coil
500 mm5612–13 mCBT-60.65Single coil
700 mm5613–14 mCBT-60.65Single coil
960 mm5614–15 mCBT-60.65Single coil
450 mm568–9 m (3 clips)BTO-10, 12, 18, 22, 28, 30Cross type
500 mm569–10 m (3 clips)BTO-10, 12, 18, 22, 28, 30Cross type
600 mm5610–11 m (3 clips)BTO-10, 12, 18, 22, 28, 30Cross type
600 mm568–10 m (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type
700 mm568–10 m (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type
800 mm5611–13 m (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type
900 mm5612–14 m (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type
960 mm5613–15 m (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type
960 mm5614–16 m (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type
Blade Specifications by Code
Code Blade Thickness (mm) Core Wire Dia. (mm) Blade Length (mm) Blade Width (mm) Blade Space (mm)
BTO-100.5 ± 0.052.5 ± 0.110 ± 113 ± 126 ± 1
BTO-120.5 ± 0.052.5 ± 0.112 ± 115 ± 126 ± 1
BTO-180.5 ± 0.052.5 ± 0.118 ± 115 ± 133 ± 1
BTO-220.5 ± 0.052.5 ± 0.122 ± 115 ± 134 ± 1
BTO-280.5 ± 0.052.5 ± 0.1281545 ± 1
BTO-300.5 ± 0.052.5 ± 0.1301845 ± 1
CBT-600.6 ± 0.052.5 ± 0.160 ± 232 ± 1100 ± 2
CBT-650.6 ± 0.052.5 ± 0.165 ± 221 ± 1100 ± 2
Available Types
  • Cross razor barbed wire spirals
  • PVC coated razor barbed wire
  • Flat razor wire
  • Welded concertina razor barbed wire
Applications

Barbed Razor Wire is an effective and economical safety barrier that can be mounted on top of existing fences for enhanced security. It is widely used in gardens, hospitals, industrial and mining enterprises, government buildings, and other security facilities. It is also used for railway and highway division, agricultural fencing, and more.

Key Features
  • Excellent protective performance
  • Attractive appearance with a great variety of options
  • Rapid construction and installation
  • Strong deterrence effect
Packing & Delivery
Packing Details

The standard package for razor wire is waterproof paper inner with a woven bag outside. After packing, 50–100 rolls are compressed into one large roll and tied with steel strip.

  1. Standard export packing
  2. Waterproof paper inner
  3. Woven bag outside
  4. Compression
  5. Complete package: Tied by steel strip after compression
  6. Complete package: Without compression
Delivery Details

Maximum 25 tons can be loaded in one 20 ft container.
