Home > Products > Barbed Razor Wire > Galvanized Anti Climb BTO-22 Barbed Razor Wire for Protective Construction

Galvanized Anti Climb BTO-22 Barbed Razor Wire for Protective Construction

Product Details

Place of Origin: Anping,China

Brand Name: Bingze

Certification: ISO9001-2015

Model Number: GRW20230921

Payment & Shipping Terms

Minimum Order Quantity: 50Roll

Price: 10-50 dollars

Packaging Details: Packing each bundle with anti-rust paper and light oil then wrapped in plastic film or hessians cloth with metallic pallet and put in 20ft or standard sea worthy. ral 3002 ppgi coil, ppgi coil galvanize steel, galvanized steel color coated ppgi coils

Delivery Time: 10-15days

Payment Terms: T/T,L/C

Supply Ability: 15000rolls per month

Get Best Price
Highlight:

20kg/roll Barbed Razor Wire

,

20kg/roll razor blade wire

Material:
Iron Wire, Q195-Q235
Barb Distance:
26mm-100mm
Wire Diameter:
2.5mm
Weight:
5-20kg/roll
Blade Thickness:
0.5±0.05
Blade Length:
22±1
Material:
Iron Wire, Q195-Q235
Barb Distance:
26mm-100mm
Wire Diameter:
2.5mm
Weight:
5-20kg/roll
Blade Thickness:
0.5±0.05
Blade Length:
22±1
Galvanized Anti Climb BTO-22 Barbed Razor Wire for Protective Construction
5-20kg/roll Galvanized Steel Barbed Razor Wire BTO-22 For Protection
Product Overview

Galvanized Steel Barbed Razor Wire BTO-22 is a high-security fencing solution made from low-carbon steel with electroplating and galvanizing treatment. This cost-effective wire is widely used in perimeter security fencing, farm fencing, large pastures, and various protective applications.

Galvanized barbed razor wire product illustration
Product Features
  • Easy to construct with minimal skills required
  • Long-lasting durability with minimal maintenance
  • Multiple strand installation for optimal security
  • Suitable for various livestock including sheep and goats
  • Available in IOWA type with 2 strands, 4 points
  • Barbs distance: 3-6 inches (Tolerance ±1/2")

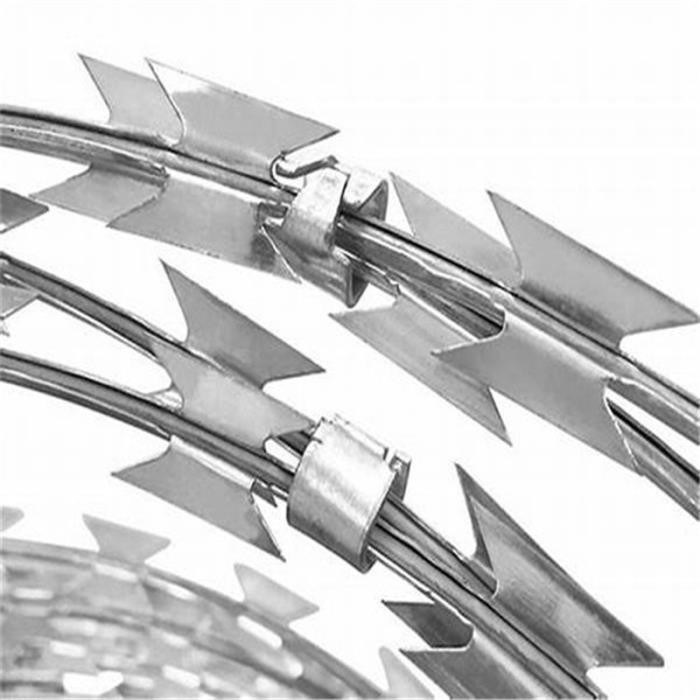

Barbed razor wire close-up detail
Security Applications

Concertina Razor Wire provides serious security protection at a relatively low cost. This viciously effective barrier deters vandals, robbers, and saboteurs with its corrosion-resistant galvanized steel cutting ribbon wrapped around a core of galvanized spring steel wire.

The wire is impossible to cut without specialized tools and provides a long-lasting, trusted security solution used by professionals worldwide.

Technical Specifications
Blade Style Blade Thickness (mm) Wire Thickness (mm) Blade Length (mm) Blade Width (mm) Blade Spacing (mm)
BTO-100.5±0.052.5±0.110±113±126±1
BTO-120.5±0.052.5±0.112±115±126±1
BTO-180.5±0.052.5±0.118±115±133±1
BTO-220.5±0.052.5±0.122±115±134±1
BTO-280.5±0.052.5281545±1
BTO-300.5±0.052.5301845±1
CBT-600.6±0.052.5±0.160±232±1100±2
CBT-650.6±0.052.5±0.165±221±1100±2
Razor wire technical diagram Barbed wire weaving methods
Manufacturing Process

Barbed Wire is one of our main products with dedicated processing factories. We offer three weaving methods and four material options, along with customization services to meet diverse customer requirements.

Barbed wire manufacturing process
Product Gallery
Barbed razor wire product display Barbed wire installation example Barbed wire close-up view Barbed wire roll packaging Barbed wire quality inspection
Packaging & Delivery

We offer standard packaging with multiple options available to meet customer requirements. Our packaging ensures product protection during transportation and storage.

Barbed wire packaged on pallets Barbed wire shipping preparation Barbed wire warehouse storage Barbed wire quality packaging
Applications

Our barbed wire is widely used in grasslands, pastures, rat fences, highways, and various security applications. We guarantee product quality while maintaining competitive pricing.

Barbed wire application examples
Company Profile

Anping Bingze Wire Mesh Products Co., Ltd. has specialized in stainless steel wire mesh production and R&D for 25 years. As an integrated manufacturer, we produce, process, distribute, and wholesale a comprehensive range of wire mesh products including galvanized welded wire mesh, stainless steel welded wire mesh, PVC welded wire mesh, crimped wire mesh, chain link fence, steel fence, welded wire mesh fence panels, PVC euro fence, 358 anti-climb fence, and razor wire.

Our company operates on four core principles: High Quality, Quick Delivery, Better Price, and Thorough Service. Through precise manufacturing machines and advanced techniques combined with scientific management and quality control systems, we have earned the trust of customers worldwide.

High Temperature Resistant 304 Stainless Steel Woven Wire Mesh
Certifications
Company quality certifications
Frequently Asked Questions
Q: How long is your delivery time?
A: Generally 3-7 days if goods are in stock, or 15-20 days if not in stock, depending on quantity.
Q: Do you provide samples?
A: Yes, we provide product samples for testing. Samples are free but freight is collected by the customer.
Q: How can I know the completion of my order?
A: Deposit payment → start production → transfer info to logistics → book shipment → inform customer ETD & ETA → load container → balance payment → send documents.
Q: How can I know whether you are a reliable company?
A: We have been in business since 1987 with extensive exporting experience and hold multiple certifications.
